Winstar Road Supply is a trusted provider of professional traffic control and work-zone safety solutions, offering compact portable changeable message signs engineered for maximum visibility, durability, and remote operation. Our mission is to improve roadway safety by delivering clear, reliable messaging that protects workers, informs drivers, and keeps projects moving efficiently.

Winstar compact portable message signs are widely used in city and county roadways, school zones, urban work zones, and special events. With a high-contrast amber LED matrix display and flexible message control options, these signs provide professional-grade performance in a smaller, space-efficient footprint.

Built for demanding field conditions, Winstar message signs meet MUTCD requirements and are manufactured to rigorous quality standards. Featuring an energy-efficient design, rugged trailer construction, and an NTCIP-compliant controller, this sign delivers dependable performance with a lower total cost of ownership.

Each Winstar WRS-200M Standard Matrix PCMS is custom made to order. Please allow 3–4 weeks lead time.

Technical Specifications

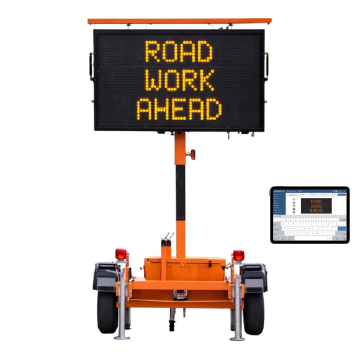

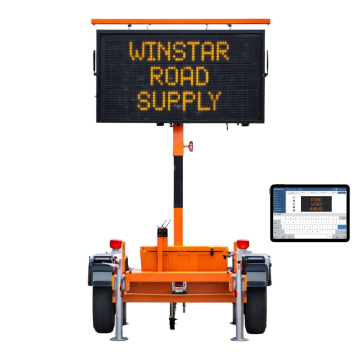

Winstar™ WRS-200M Standard Matrix Portable Changeable Message Sign

Key Features

• Standard, space-efficient full-matrix display
• High-contrast amber monochrome LED matrix
• NTCIP-compliant touchscreen controller
• Multiple message control options (on-sign, near-sign, remote)
• Energy-efficient, solar-powered design
• Rugged trailer construction for urban environments

Display & Messaging

• Display Type: Full-Matrix Monochrome (Amber) LED Message Sign
• Display Panel Size: 45" × 80"
• Matrix Resolution: 30 × 56 pixels
• LED Configuration: 2 LEDs per pixel
• Default Character Size: 9" characters (5 × 7 pixel font)
• Messaging Capability:
  • 3 lines of 9 characters per line (5 × 7 font)
  • Up to 3 lines of 13 characters per line (3 × 7 font)
• Maintenance: Plug-and-play display modules for simplified service

Controller & Connectivity

• Controller: NTCIP-Compliant Touchscreen Controller
• User Interface: NTCIP Color LCD Touchscreen

• Message Control:
  • On-sign using Touchscreen Controller
  • Near the sign using smartphone via Cloud Sync Wi-Fi
  • Remotely via web-based software
• Wireless Connectivity: Cloud Sync Wi-Fi for local message changes
• Cellular Connectivity: Fully integrated 4G LTE modem
• Remote Management: Battery status, GPS location, alerts, and message logs
• Connected Work Zone: CWZ / WZDx compatible


Smart Connectivity – WinstarCloud

• Free WinstarCloud platform subscription included
• View, monitor, and manage the sign from any internet-connected device
• Real-time access to:
  • Active messages
  • Device status and diagnostics
  • Battery and power levels
  • GPS location
  • Historical message logs
• Export data for reporting, compliance, and project documentation
• Web-based platform — no software required

Cellular Connectivity

• Integrated 4G LTE cellular modem
• Up to 10 years of cellular data included
• No on-site Wi-Fi required
• Designed for reliable operation in urban and low-speed roadway environments

Trailer & Mechanical Features

• Operating Height: 130"
• Overall Length: 130"
• Travel Height: 88"
• Overall Width: 74"
• Approx. Weight: 1,450 lbs
• Axle Rating: 2,000 lbs
• Lift System: Manual lift mechanism
• Stabilization: Four adjustable stabilizer legs
• Mast: Rugged indexed rod mast brake (up to 209° rotation)
• Finish: Heavy-duty powder-coated steel frame

Power System

• Primary Power: Battery / Solar Power System
• Solar Panels: All-Season Performance Solar Panels

• Battery Design: LiFePO4 maintenance-free batteries with anti-theft compartment

• Solar Charging: Integrated solar panels (tilt-and-rotate optional)
• Energy Efficiency: High-efficiency LED technology for extended runtime

Optional Add-Ons

• Battery charger
• Radar speed detection
• Traffic data collection (requires radar)
• Rear leveling swivel jacks
• Tilt-and-rotate solar panels
• Additional accessories available upon request

Applications

• City and county roadways
• School zones
• Urban construction projects
• Special events
• Low-speed roadway traffic management

Warranty

• Electronic Components: 2-Year Warranty
• Trailer: 3-Year Warranty

FREE US SHIPPING* available within the continental United States. Additional shipping charges may apply for Alaska, Hawaii, U.S. territories, or international destinations.
