Elevated Surveillance
Square steel telescopic mast with manual or electric winch options and internal wiring.
Winstar Road Supply is a leader in municipal-grade safety and monitoring solutions, delivering professional equipment designed for real-world reliability in harsh outdoor environments. Our mission is to help municipalities, contractors, HOAs, and facility operators protect people, property, and public spaces through advanced deterrence and rapid-deployment surveillance systems.

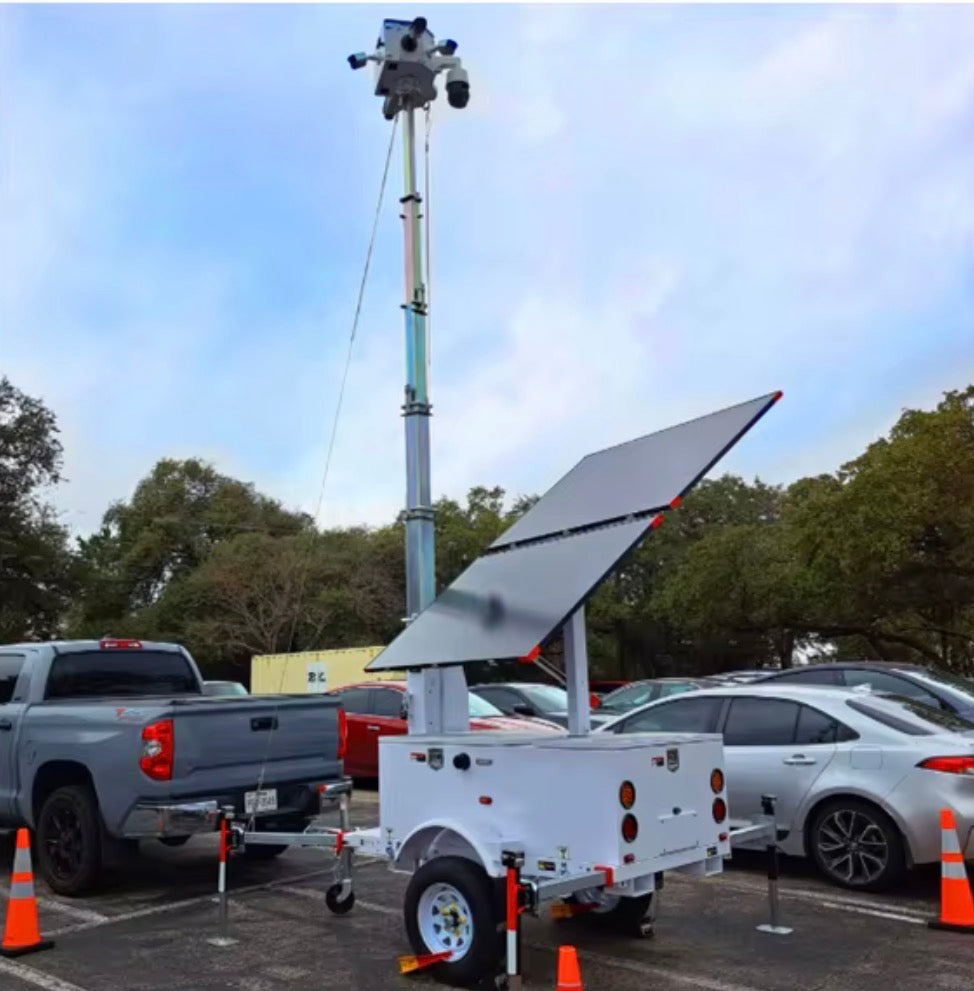

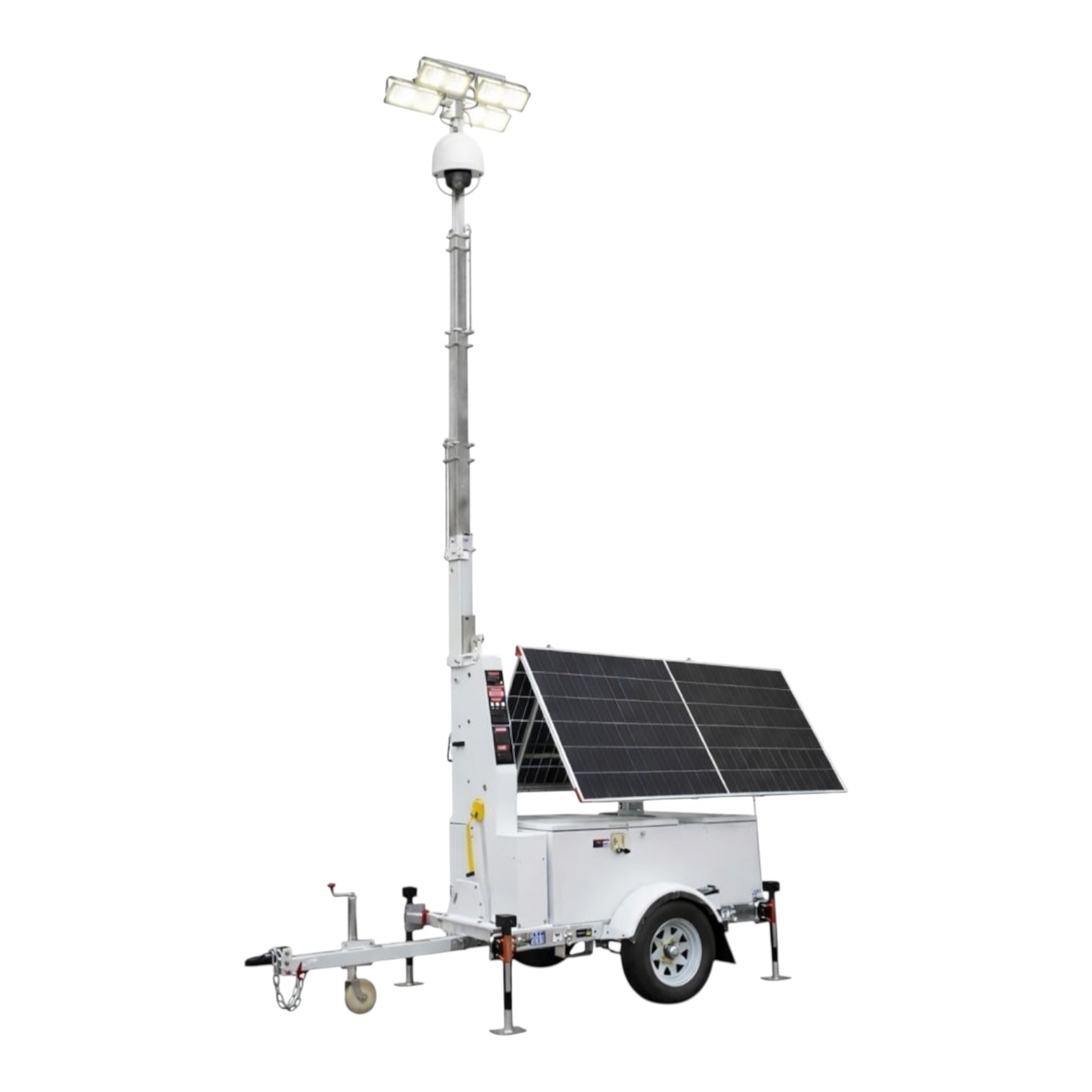

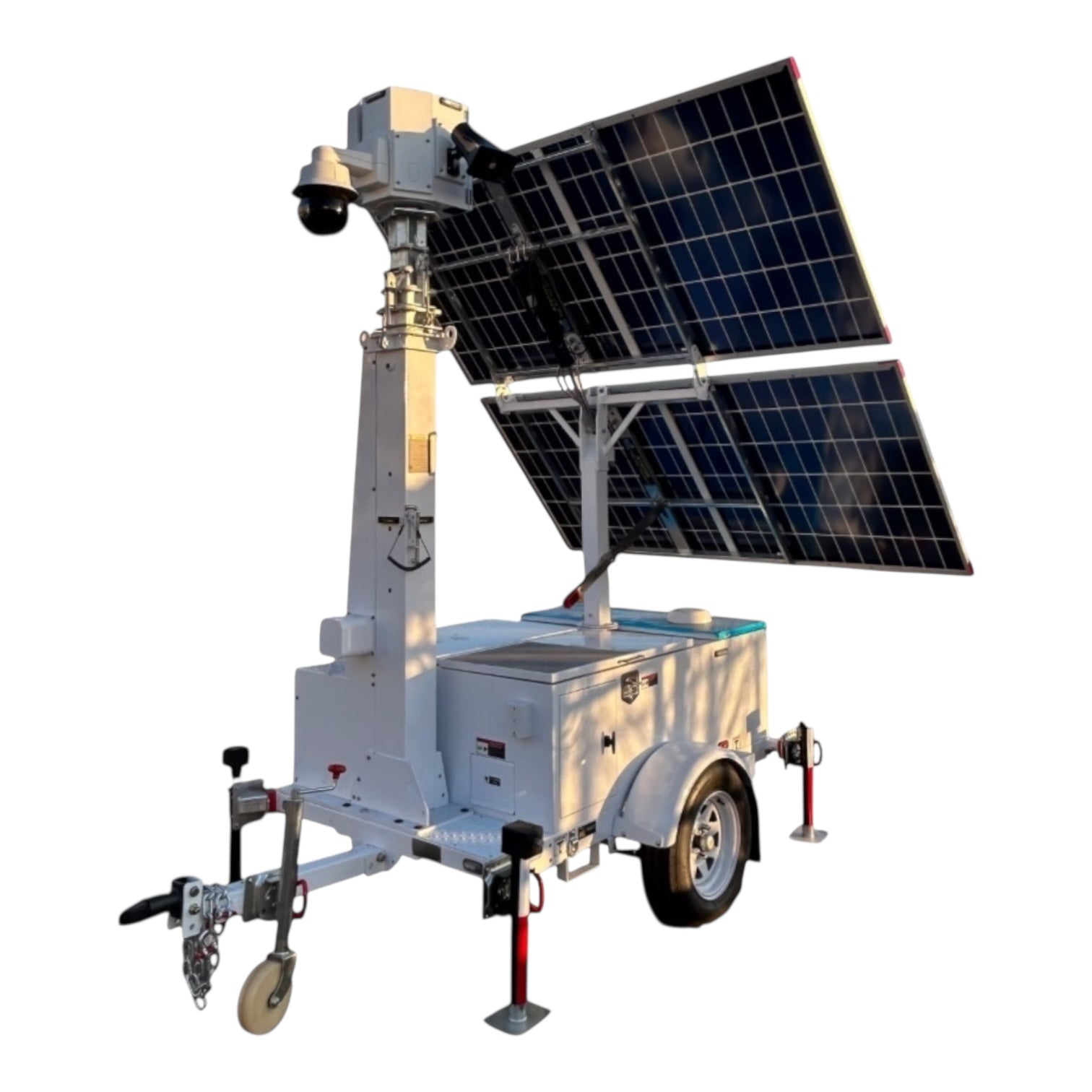

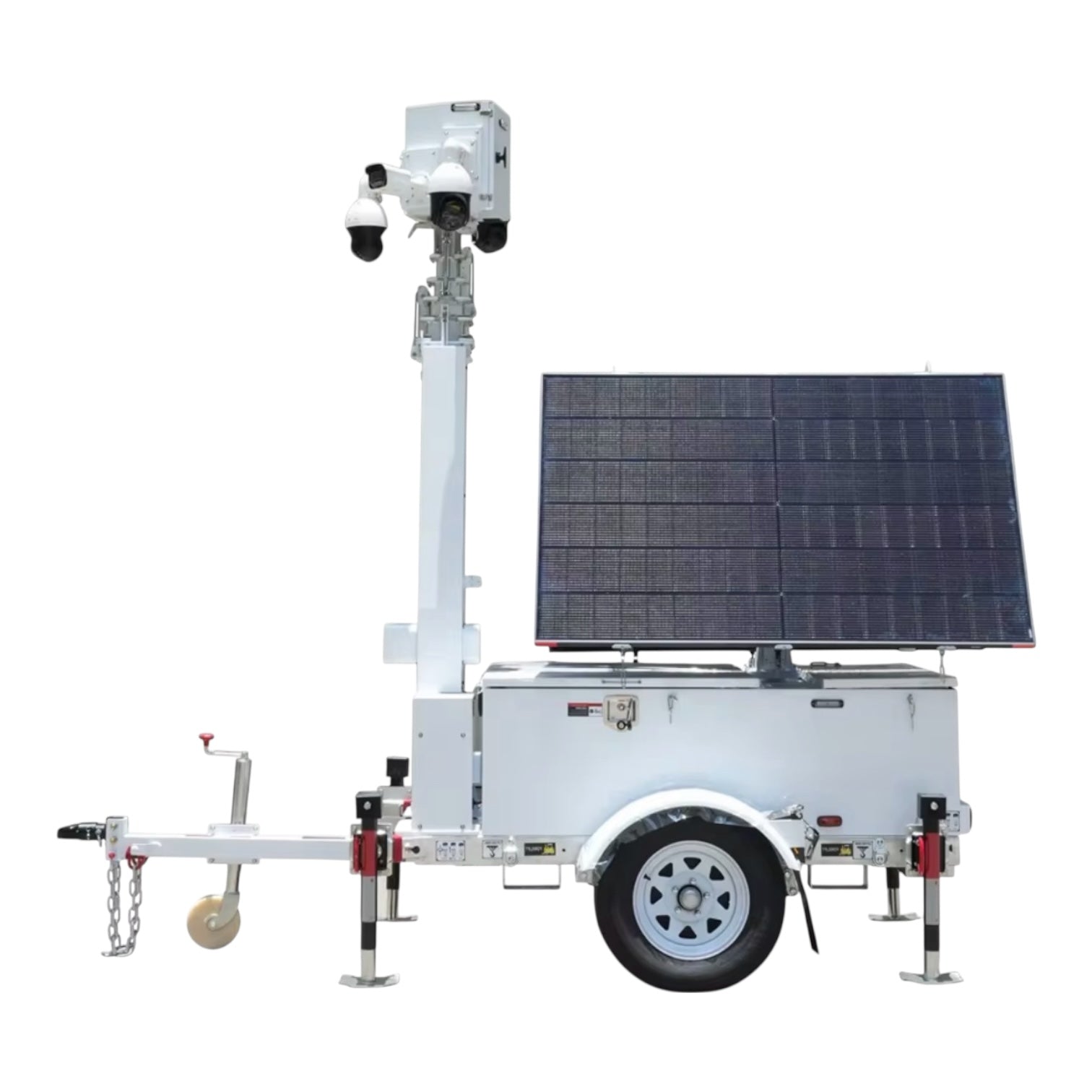

The Winstar Municipal Mobile Security Surveillance Trailer is engineered for high-performance, rapid-deployment monitoring, helping enhance public safety in municipalities, construction zones, parks, events, and critical infrastructure locations. Designed for dependable outdoor operation, this solar-powered mobile surveillance platform combines high-efficiency solar charging, long-duration battery storage, and an elevated telescopic mast to deliver reliable 24/7 security coverage—without requiring permanent power or infrastructure.
Each system is built for professional-grade durability, easy on-site deployment, and long-term low-maintenance operation, making it an ideal solution for proactive crime deterrence, remote site monitoring, and temporary security enforcement applications.
Each Winstar Municipal Mobile Security Surveillance Trailer is custom made to order, please allow 1-3 weeks lead time.
Package & Connectivity Options
Winstar™ Municipal Mobile Security Surveillance Trailer
Overview
Product: Winstar Municipal Mobile Security Surveillance Trailer
Type: Mobile Solar CCTV Security Surveillance Trailer with Telescopic Mast
Application: Remote site security monitoring for municipal use, construction zones, events, parks, and critical infrastructure
Deployment: Mobile trailer / rapid deployment / temporary or semi-permanent installation
Technology Package Options
Standard: Mobile CCTV Surveillance Trailer (360° security camera sphere)
Optional Add-On: Mobile LPR Monitoring Package (plate capture + searchable records)
Optional Add-On: Mobile Speed + LPR Enforcement Package (radar + LPR + evidence capture)
CCTV Module Configuration Options
Option A: 6-sided CCTV equipment enclosure
Option B: 360° security camera sphere (dome/PTZ style)
Option C: Combination configuration (enclosure + 360° camera sphere)
CCTV Mount Rotation: 360° rotatable mounting structure (configuration dependent)
Lighting Options: With or without 4-head LED light array (optional integrated light package)
Pole / Mast System
Mast Type: Square Telescopic Mast, Steel Q235
Lift System: Manual winch or electric winch lifting options
Maximum Height: Up to 23–30 ft
Mast Load Rating / Wind Resistance: Up to 154 lbs, up to 72 mph wind resistance
Finish: Hot-dip galvanized (each mast section)
Anti-Vandal Cable Design: Inside-mast spring cable design + built-in internal wiring
Solar Power System
Solar Power System: Solar charging system with adjustable dual panels
Solar Panel Options:
2 × 450W = 900W total, or 2 × 600W = 1200W total
Solar Panel Type: Dual-facial (bifacial) high-power solar panels
Solar Rotation: 180° rotatable
Solar Tilt Adjustment: 30°–60° tiltable
Charge Controller: Victron 45A MPPT Solar Charge Controller
Battery Monitoring: Battery monitor included
Remote Monitoring System: Cerbo-S GX remote controlling system
Display Interface: GX Touch display
Power Protection: Current protector
Battery / Runtime
Battery Type: GEL Battery
System Voltage: DC 24V
Battery Capacity: 12,000 Wh (12 kWh)
Backup Charging: 1.5 kW battery charger (grid backup charging capability)
Estimated Solar Charging Time: 8.5 hours
Estimated Runtime: Up to 3 days @ 133W continuous load (example runtime)
CCTV Equipment Box / Enclosure
Enclosure Structure: 6-sided enclosure
Service Access: Rear-opened design for convenient maintenance
Mounting Plate: Removable mounting plate
Cooling: Internal cooling fan
Strobe Lights: 4 integrated strobe lights
Internal Power Output Options: 24V / 48V / PoE
PoE Support: PoE switch inside the enclosure
Weatherproofing / Durability
Ingress Rating: IP65 waterproof equivalent
Joint Sealing: Enhanced joint sealing
Fastener Design: Blind hole fastener construction
Moisture Protection: 100% moisture protection
All-Weather Performance: Designed to operate in downpours and harsh environments
Trailer Platform
Chassis Standard: US standard trailer chassis
Hitch Type: Ball hitch
Axle: Single axle
Outriggers: 4 × Y-shape manual outriggers
Exterior Coating: Outdoor anti-corrosive powder coating
Storage Compartment: One-compartment design for efficient space utilization
Storage Capacity: Approx. 8 sq ft capacity
Deployment Benefit: Faster on-site deployment / easy installation & maintenance
Compliance
• Standards: DOT-compliant lighting, reflectors, safety chains, and coupler
BUY AMERICAN ACT COMPLIANT* This product is manufactured in the United States and intended to meet applicable Buy American Act domestic end product requirements. Final compliance may depend on project-specific contract documents, procurement rules, agency requirements, and any applicable exceptions or waivers. FREE US SHIPPING* Complimentary shipping is available within the 48 contiguous United States. Alaska and Hawaii are excluded from this offer. Please contact us for a shipping quote to either state.
*The product images shown may not be an exact representation of the product.
PRODUCT INFORMATION · Mobile Trailer
Explore the equipment, power system, mast, surveillance options, and support available for the Winstar Municipal Mobile Security Surveillance Trailer.
MUNICIPAL SECURITY
Support public-space monitoring for municipalities, agencies, and civic operations. Winstar surveillance platforms combine an elevated telescopic mast, solar charging, battery storage, and configurable CCTV equipment.
Square steel telescopic mast with manual or electric winch options and internal wiring.
Adjustable bifacial solar panels, a 24V GEL battery system, and supporting charging controls.
360° camera sphere, equipment enclosure, or combination configurations; lighting options are available.
Towable single-axle trailer with a ball hitch, roadway equipment, and four manual outriggers for placement at temporary or semi-permanent sites.
TECHNICAL SPECIFICATIONS
Key published figures from the product descriptions. Request the final specification sheet for your exact configuration.
Download the applicable specifications, or request a configuration-specific equipment sheet.
POWER & DEPLOYMENT
Solar charging, elevated equipment, and a configurable platform allow deployment in locations where permanent power and cabling may not be practical.
Two bifacial solar-panel configurations with tilt and rotation adjustments.
Listed GEL battery storage and remote power-system management components.
Towable single-axle trailer with a ball hitch, roadway equipment, and four manual outriggers for placement at temporary or semi-permanent sites.
The export cites an example of up to 3 days at a continuous 133W load. Actual autonomy varies with selected cameras, lights, weather, shading, and battery condition. Confirm performance for the final build.
AVAILABLE EQUIPMENT PACKAGES
Start with the CCTV security platform and select compatible equipment and service upgrades based on the application.
Listed base surveillance configuration with a 360° camera sphere. Camera and enclosure arrangements are configurable.
Optional plate capture and searchable-record capabilities where supported by the selected package and applicable requirements.
Optional combined radar, plate recognition, and evidence-capture capabilities. Regulated enforcement uses require separate authorization and review.
BUILT TO ORDER
Available options include camera/enclosure arrangements, LED lighting, mast lift method, connectivity, optional monitoring, and site logistics. Final pricing and scope depend on the selected package.
APPLICATIONS · MUNICIPAL SECURITY
Support public-space monitoring for municipalities, agencies, and civic operations.
Support security observation around civic buildings and public assets.
Provide adaptable surveillance at temporary public works and construction sites.
Help monitor parking, recreation areas, and municipal property.
Review configuration and optional LPR capabilities against agency requirements.
CONNECTED SECURITY OPTIONS
Camera equipment, network access, remote device management, and optional professional monitoring should be specified around the deployment. WinstarCloud capabilities may be available with compatible hardware and service arrangements; confirm what is included with your quote.
Configurable CCTVStandard 360° camera sphere and available alternative camera/enclosure packages.
Remote Access OptionsDiscuss compatible connectivity and remote viewing or management services.
Optional MonitoringDiscuss third-party or professional monitoring requirements as part of your custom quote.
COMMON QUESTIONS
Practical answers about deployment, power, surveillance packages, and ordering.
This model uses a towable, single-axle trailer chassis with a ball hitch. Four manual outriggers support positioning at the destination. Confirm towing and transportation details for the exact configuration.
The listed platform includes dual solar-panel configurations and 24V GEL battery storage. A grid backup charger is also listed. Actual operating time depends on the selected equipment, electrical load, sunlight, and site conditions.
The published mast range for this product is up to 23–30 ft, depending on the selected mast and lifting configuration. Confirm permitted height, wind considerations, and site constraints before deployment.
No. The descriptions identify a CCTV surveillance package as standard. License plate recognition, radar, and evidence-capture packages are separately described as optional add-ons. Any enforcement deployment requires appropriate legal and agency authorization.
The export lists a 360° camera sphere, a 6-sided CCTV equipment enclosure, and a combination option. A four-head LED light array is offered as an option. Exact camera specifications, night-vision features, and included accessories should be confirmed on the final quote.
Do not assume so. WinstarCloud, connectivity services, and professional monitoring depend on the selected hardware and service package. Request confirmation of platform access, connectivity, monitoring coverage, and recurring fees for your configuration.
The current product descriptions state an approximate 1–3 week lead time for build-to-order units. Transport, delivery, site preparation, and installation time may be additional.
A product specification sheet is available from the Product Information section above. The final build and any optional package should still be confirmed before ordering.
PROJECT SUPPORT
Share your location, intended site use, equipment package, available access, and power or monitoring requirements. Winstar can help identify the appropriate configuration.
THE WINSTAR DIFFERENCE
Practical deployment support for municipalities, public spaces, property managers, contractors, and security teams—from selecting the equipment to organizing logistics and long-term operation.
Configure the surveillance platform around property access, coverage areas, power, and operating requirements.
Evaluate camera arrangements, mast lift choices, lighting, and optional LPR or radar equipment.
Discuss towing, access, trailer placement, leveling, and site preparation.
Get assistance with documentation, quotations, custom configurations, and available installation services.
Winstar can help you plan equipment selection, delivery and placement, compatible connectivity and monitoring, financing, and installation services.
SALES & PROJECT SUPPORT
Tell us where the unit will be deployed, how it will be positioned, and which camera, monitoring, and power options you need.
