Winstar Road Supply is a leader in traffic-safety technology, delivering municipal-grade camera systems engineered to improve security, streamline investigations, and enhance roadway awareness. Our mission is to provide reliable, all-weather monitoring solutions backed by professional US-based support.

The Winstar Municipal LPR Traffic Camera System uses advanced ALPR (Automated License Plate Recognition) with high-definition imaging to capture accurate plate reads across multiple lanes—day or night, in any weather. Optimized low-light performance and infrared illumination ensure clear and consistent video capture. Municipalities can configure the system for monitoring problem areas, campus and neighborhood security, or investigative vehicle lookups with user-defined watchlist alerts. This system is fully upgradeable — allowing municipalities to begin with camera-based traffic monitoring or license plate recognition (LPR) today, and later add radar for complete speed data collection and enhanced enforcement.

With IP65-rated weather protection, AC or solar power options, and secure web-based control, this system delivers dependable results and is fully expandable to meet any traffic safety or enforcement need.

For long-term reliability and high-volume operation, we recommend A/C Wired power with a direct ethernet connection, installed by a Winstar Professional Installation Partner or a qualified local contractor. Please review our Recommended Installation Guide and Specifications.

Each Winstar Municipal LPR Traffic Camera System is custom made to order, please allow 1-3 weeks lead time.

Technical Specifications

Recommended Installation Guide

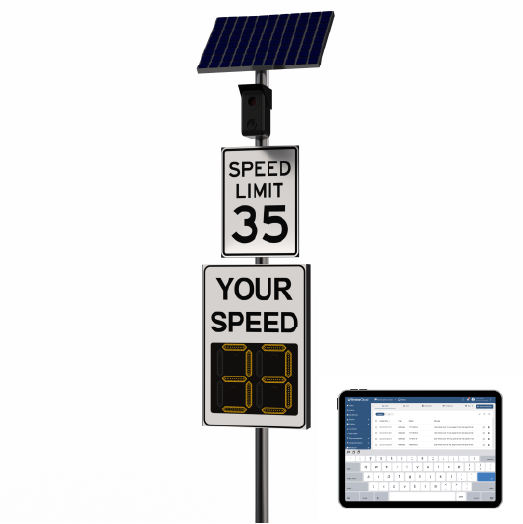

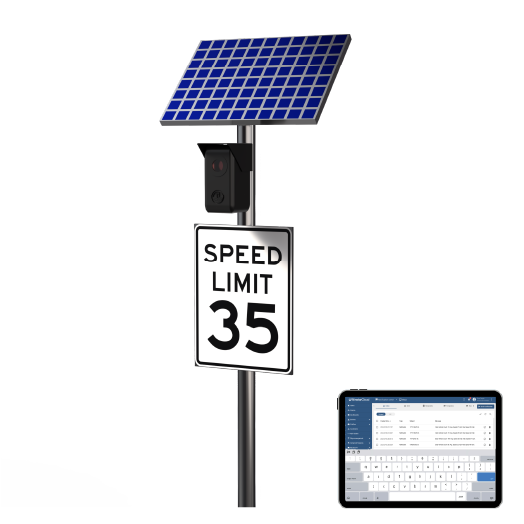

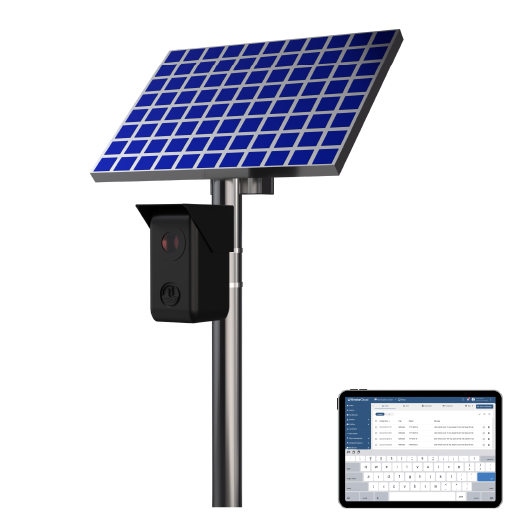

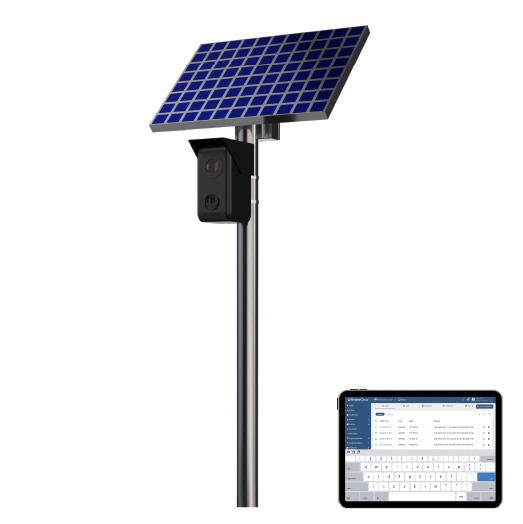

Winstar™ Municipal LPR Traffic Camera System

1 Year Free WinstarCloud Platform Subscription

1 Year Free 4G/5G Cellular Data Plan / Starlink Data Plan

Apple iPad 11" A16 (2025) Wi-Fi 128GB Included

Camera / Imaging:

• 12.3MP Sony IMX477 High-Resolution Sensor
• Full HD 1920×1080 Pixel Capture
• Low-Light Optimized; Optional IR Night Vision
• C-CS Mount, Motorized Telephoto Lens, PTZ (Pan-Tilt-Zoom) Module
• 4X Motorized Zoom; Day/Night Operation
• Optional Extended Zoom or Thermal Imaging Lens
• Supports Up To 4 Traffic Lanes (Standard: 2 Lanes)

ALPR (Automated License Plate Recognition):

• Hybrid Server & On-Device ALPR Rear Plate Recognition
• Optional Front Plate Recognition
• Optional Red Light Enforcement

Infrared Illuminator:

• 850 nm Infrared Light (Invisible to Naked Eye)
• 12 High-Power LEDs
• 90° Wide Beam Coverage
• Illumination Range Up to 65 Ft (20 M)
• Automatic Dusk-to-Dawn Operation
• IP67 Aluminum Housing With Reinforced Glass

Power Options:

• A/C Wired

• Battery / Solar (100W or 200W Panel, 12V 100Ah LiFePO₄ Battery with Built-In 100A BMS, 15,000+ Deep Cycles)

Communications:

• Wi-Fi 802.11 b/g/n
• GSM/Cellular 3G/4G/5G (2G Compatible)
• Standard SIM Slot
• 100 BASE-TX Wired Ethernet
• Optional Starlink Satellite Internet
• 1 Year Free 4G/5G Cellular Data Plan / Starlink Data Plan

Mechanical / Environmental:

• Camera Housing: IP65 Aluminum (White/Gray or Black)
• Camera Weight: 4lbs
• Control Enclosure: IP65 Galvanized Steel, 16"×12"×10", Thermostat & Fan-Controlled, White or Black Finish
• Operating Temperature: -40°F to 185°F

WinstarCloud:

• 1 Year Free WinstarCloud Platform Subscription

• View, Export, and Monitor All Collected Data in Real-Time From Any Internet-Connected Device.

Warranty:

• 2-Year System Warranty

• 1-Year Battery Warranty
