Doppler Speed Radar
Collect speed, travel direction, and traffic movement data with a dedicated Doppler radar sensor.
Winstar Road Supply is a trusted leader in traffic safety, offering advanced community-focused radar and LPR camera systems designed to calm traffic, improve driver behavior, and protect residents. Built with the same proven technology used in municipal enforcement, the Winstar Community Speed Radar LPR Camera System is tailored for HOAs, private developments, and residential neighborhoods that want effective monitoring without the complexity of city-scale infrastructure.
The system combines Doppler Radar technology with advanced ALPR (Automated License Plate Recognition) to capture clear, high-definition images and precise speed data — day or night, in all weather conditions. Communities can configure the system for data collection and warning letters, depending on their needs and local guidelines.
With durable IP65-rated weather protection, flexible A/C or solar power options, and secure cloud-based access, the Winstar Community Speed Radar LPR Camera System delivers reliable results and peace of mind. It’s a cost-effective solution to promote safer driving and protect your community.

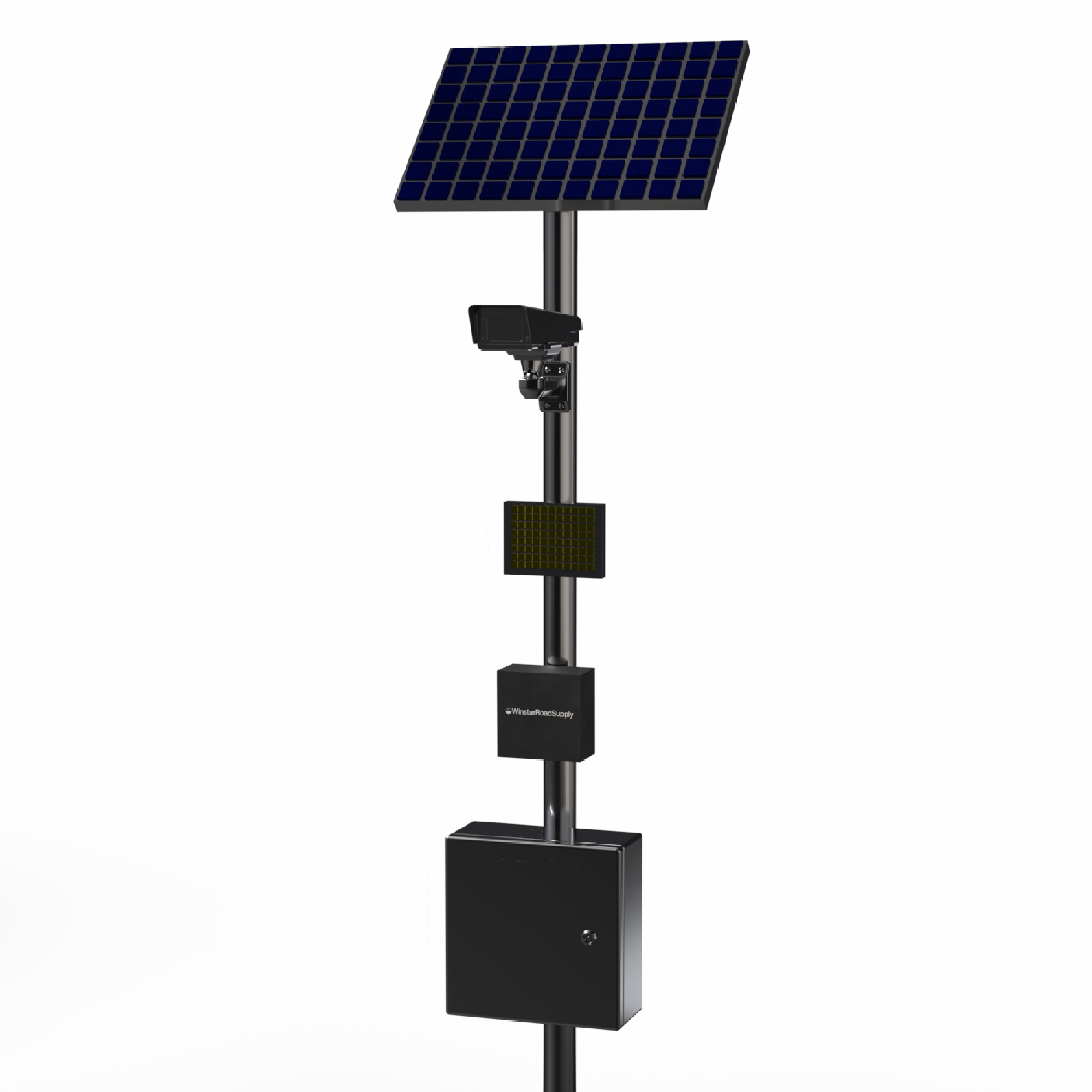

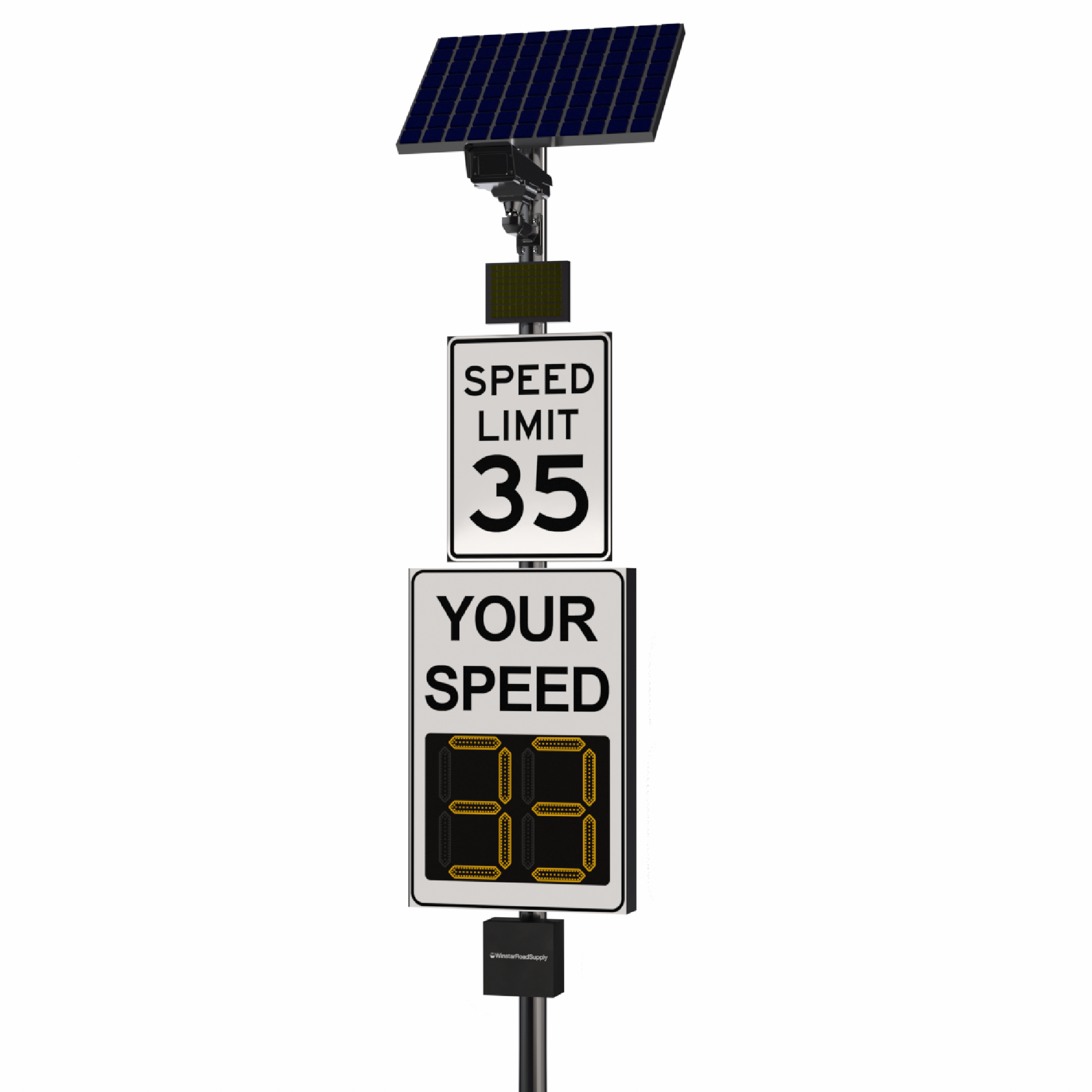

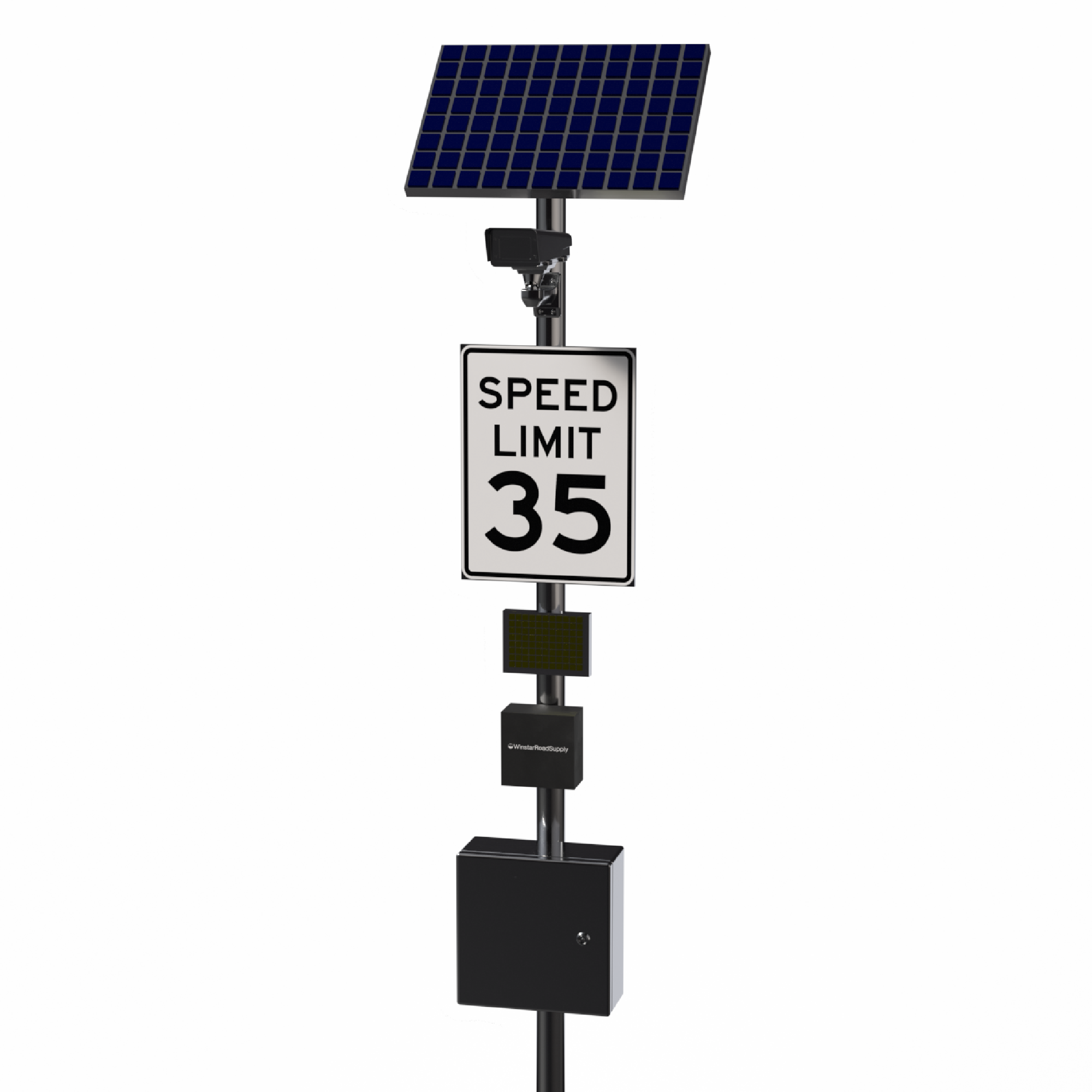

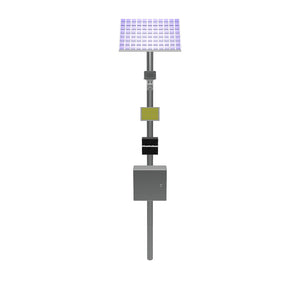

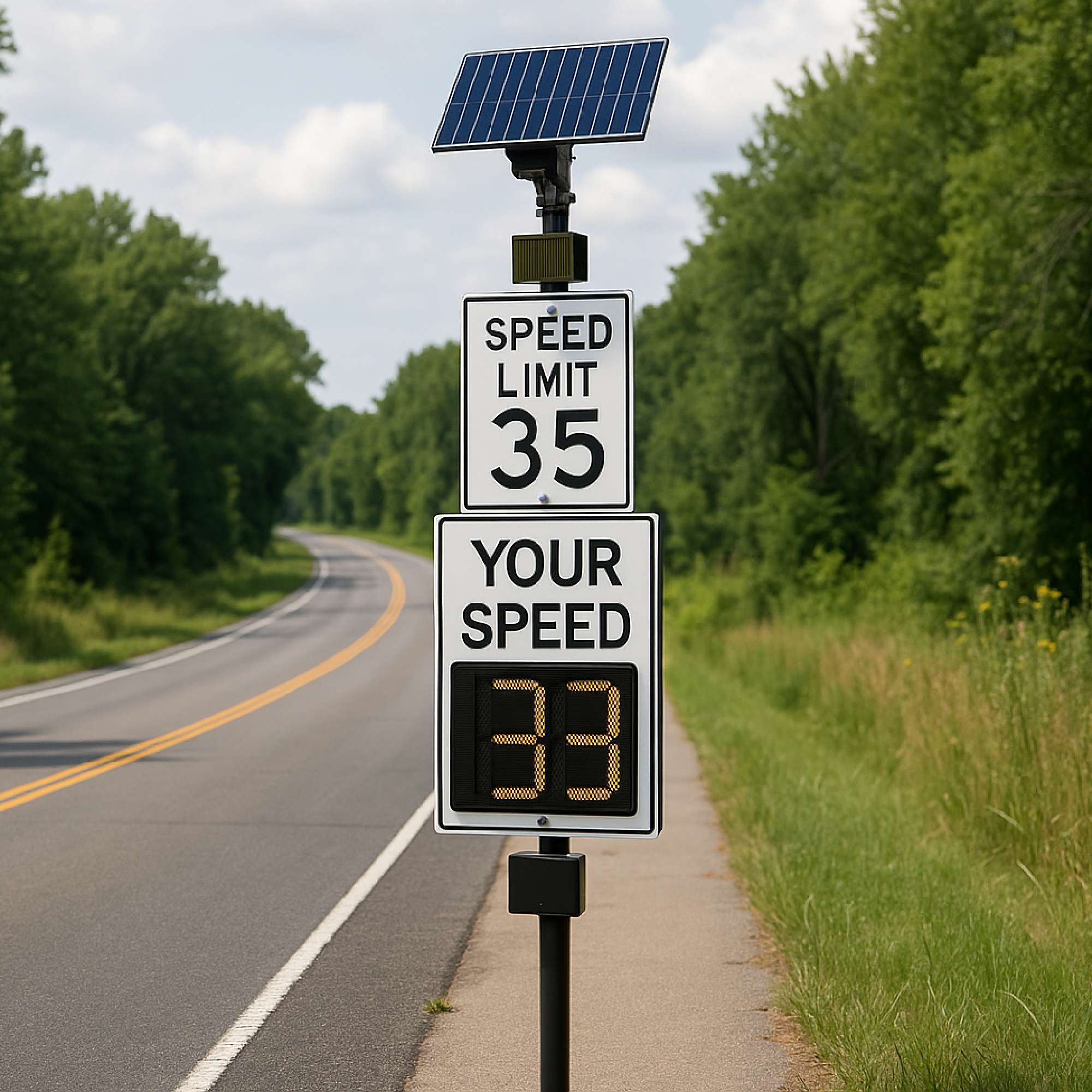

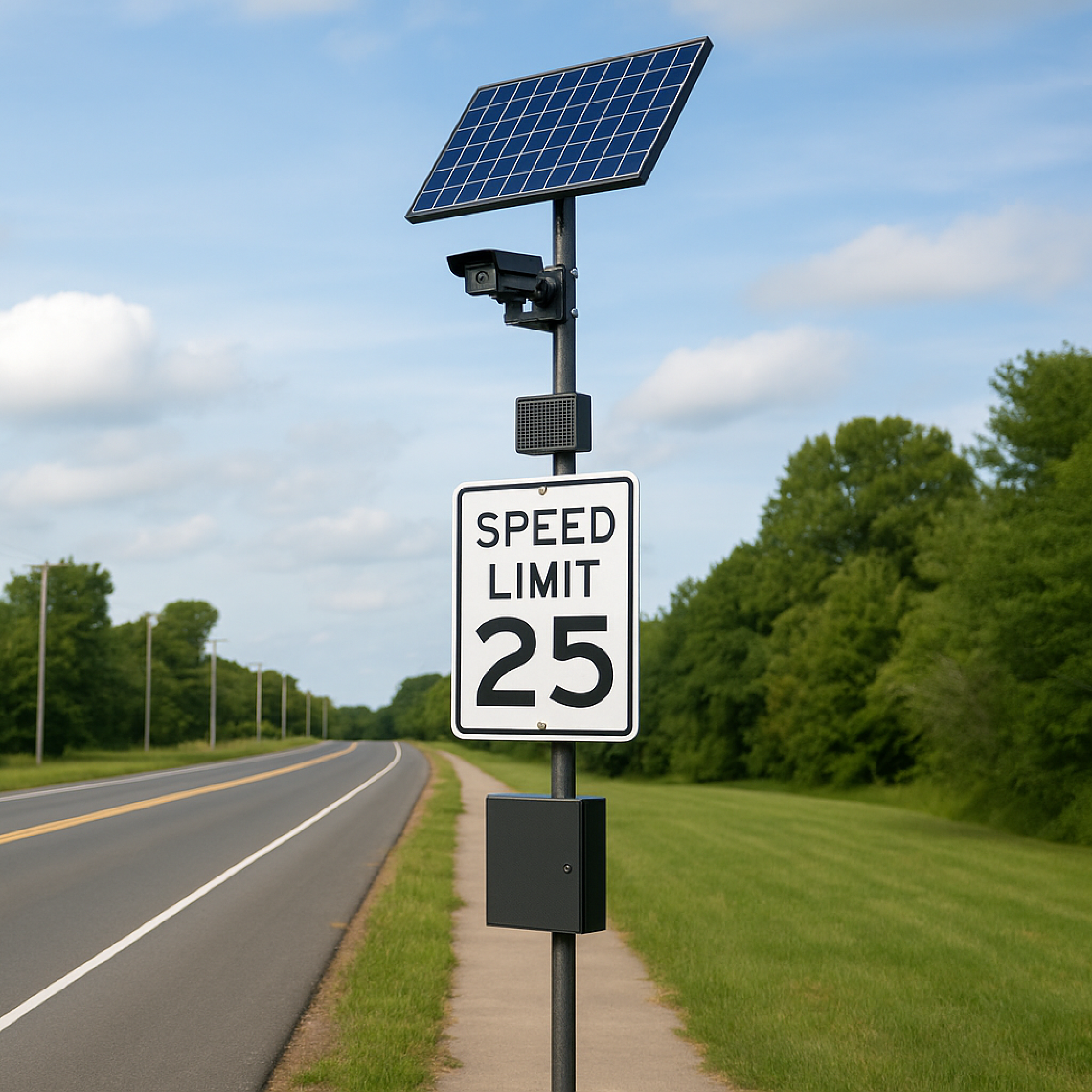

The system offers flexible mounting options and can be installed on nearly any suitable round pole, including a wide range of pole diameters and heights. Mounting brackets can be configured for larger-diameter poles, while the radar and camera modules can be positioned to accommodate the specific roadway, viewing distance, and site conditions.
For long-term reliability and high-volume warning letter operation, we recommend A/C Wired power with a direct ethernet connection, installed by a Winstar Professional Installation Partner or a qualified local contractor. Please review our Recommended Installation Guide and Specifications.
Each Winstar Community Speed Radar LPR Camera System is custom made to order, please allow 1-3 weeks lead time.
Recommended Installation Guide
WinstarCloud Administrator User Manual

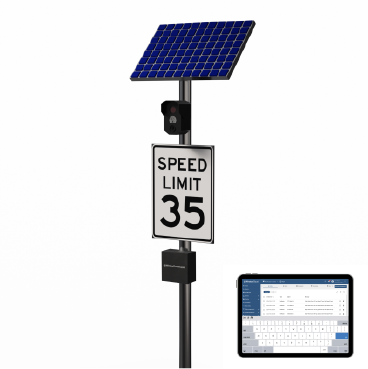

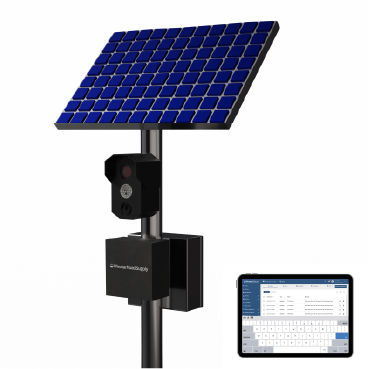

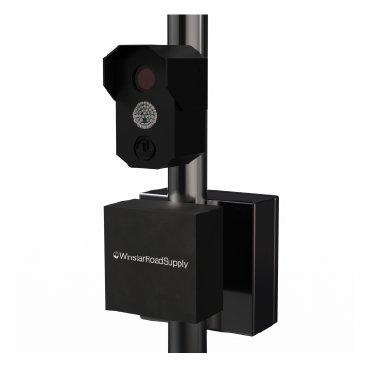

Winstar™ Community Speed Radar LPR Camera System
1 Year Free WinstarCloud Platform Subscription
1 Year Free 4G/5G Cellular Data Plan
Key Features
For detailed technical specifications, hardware ratings, and configuration options, please see the linked Technical Specifications document above.
Warning Letter Options:
Self-Managed – Review violation records, then generate and print warning letters directly from your WinstarCloud dashboard, using your own letterhead and mailing process.
Winstar-Managed – Let Winstar handle the processing for you. We can generate, print, and mail warning letters on your behalf at a set per-item rate, ensuring fast delivery. Month-to-Month.
Warranty:
2-Year System Warranty
1-Year Battery Warranty
FREE US SHIPPING* Available within the continental United States. Additional shipping charges may apply for specific delivery locations or for Alaska, Hawaii, U.S. territories, or international destinations.
*The product images shown may not be an exact representation of the product.
PRODUCT INFORMATION · COMMUNITY
Explore the equipment, technical specifications, power options, connectivity, and configuration choices available for the Winstar Community Speed Radar LPR Camera System.
COMMUNITIES & HOAS
Combined Doppler speed radar, high-resolution camera imaging, and automated license plate recognition give teams a more complete record of traffic activity, speeds, and vehicles.
Collect speed, travel direction, and traffic movement data with a dedicated Doppler radar sensor.
Review captured plate information for authorized applications, with built-in infrared night vision supporting low-light monitoring.
WinstarCloud supports remote visibility, compatible event records, monitoring, and exports based on the selected equipment configuration.
Choose wired power or appropriately sized solar/battery configurations, with network options suited to the roadway or facility.
TECHNICAL SPECIFICATIONS
Only the capabilities applicable to this product type appear below. Final equipment and optional accessories depend on the order configuration.
POWER & CONNECTIVITY
System requirements vary by site, traffic volume, operating hours, camera/radar modules, and connectivity needs. Wired AC with Ethernet is recommended for long-term and higher-demand installations.

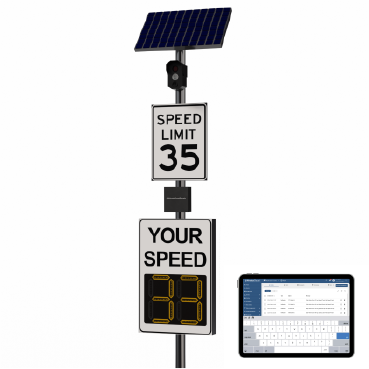

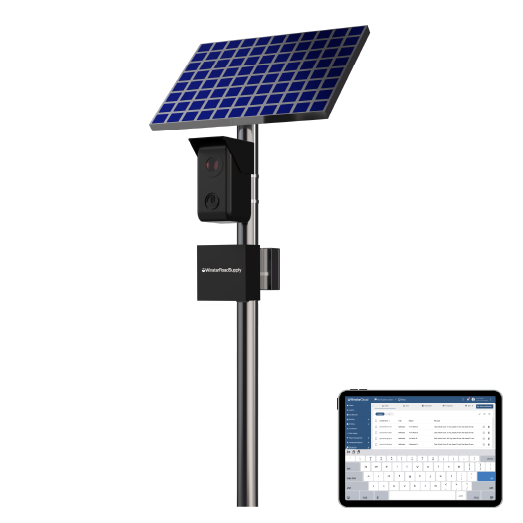

Optional solar configurations for locations without readily available electrical service.
Recommended for permanent installations and higher-volume data collection.
Choose connections appropriate for the deployment environment and data plan.
WINSTARCLOUD & DATA ACCESS
Access the records supported by this specific system—speed readings, camera imagery, plate events, or combined records as configured.
One year of platform subscription is listed as included with these systems.
Year 1 IncludedThe descriptions list a first-year 4G/5G data plan. Confirm the qualifying connectivity configuration when ordering.
Year 1 ListedCloud and cellular renewals depend on selected equipment, data usage, and plan. Review current terms before purchase.
Request DetailsPlatform access and cellular data renewals are based on the selected system, usage, and connectivity plan. Confirm service and renewal terms when configuring your order.
OPTIONS & SUPPORT
Confirm your goals, power availability, available communications, mounting conditions, and any agency requirements before finalizing an order.
Camera and radar components work together in this system.
Review pole suitability, roadway geometry, power capacity, enclosure configuration, and nearby network availability.
Confirm permitted ALPR use, access controls, privacy requirements, and retention policy.
Two-year system warranty and one-year battery warranty are listed for this product range.
ORDER INFORMATION
System configurations and site needs should be reviewed before installation.
APPLICATIONS
The Speed Radar + LPR Camera System supports communities, HOAs, residential developments, and private-road managers. Capabilities depend on the equipment selected; plate recognition and speed measurement are not interchangeable.
Review traffic activity on residential and privately managed community roads.
Collect speed and direction information to identify problem locations and changes over time.
Use ALPR event records for authorized monitoring or investigations, subject to applicable requirements.
Plan power, connectivity, data access, and potential future equipment additions as needs evolve.
CONNECTED TECHNOLOGY
WinstarCloud provides remote monitoring and access to compatible records from your configured system. Review speed and direction data. Access supported camera events and imagery. Review configured license plate recognition results.
Remote System MonitoringCheck connected equipment and supported data remotely.
Traffic & Event InsightsReview compatible records and export available information for analysis.
Configured ConnectivityChoose wired Ethernet, Wi-Fi, cellular, or an available satellite option appropriate for the deployment.
COMMON QUESTIONS
Important answers about capabilities, installation, WinstarCloud, warranties, and expected shipping.
Yes. It includes Doppler radar with an indicated detection range of 1–100 m (3–328 ft). Exact performance depends on site conditions, sensor geometry, and configuration.
Yes. The listed camera uses a 12.3MP Sony IMX477 sensor with 1920×1080 Full HD capture and motorized lens features. Final options vary by configuration.
Yes. This ALPR-capable configuration supports rear-plate recognition and compatible vehicle-event review. Front-plate and other functions are optional. Use and retention are subject to applicable requirements.
Yes. Wired AC is an option, and solar configurations are listed with 100W or 200W panels. The battery configuration is 12V 50Ah lithium configuration. Optional 12V 100Ah LiFePO₄; final sizing based on duty cycle and site.
Listed connections include 100 BASE-TX Ethernet, Wi-Fi 802.11 b/g/n, and configured cellular service. Optional Starlink is described for suitable deployments. AC with direct Ethernet is recommended for higher-volume permanent installations.
The product descriptions list one year of WinstarCloud access and a first-year cellular data plan. Qualifying connectivity, activation, coverage, and renewal terms depend on the ordered configuration. Renewal costs and data requirements should be confirmed against the chosen service plan.
Yes. Camera-equipped systems include built-in infrared night vision, low-light operation, and motorized zoom for day and night monitoring. The listed IR illuminator uses 850 nm infrared lighting with a specified range of up to 65 ft (20 m) under suitable site conditions. Actual nighttime image quality and coverage depend on installation and lighting conditions.
No purchase alone grants enforcement authority. Monitoring, warning notices, and official citation enforcement are different applications. Any enforcement function requires a qualifying system, separate configuration, governmental authorization, and compliance with applicable law and agency requirements.
Approximately 1–3 weeks; custom-built to order. Standard listings specify a two-year system warranty and one-year battery warranty. Shipping is listed as free within the continental United States, subject to stated exclusions.
PROJECT SUPPORT
Tell us the road type, lane count, goals, power availability, networking, and applicable agency requirements. Winstar can help review the appropriate system configuration.
We help communities, HOAs, residential developments, and private-road managers select connected monitoring systems, review installation needs, and plan for reliable long-term operation.
Get guidance selecting radar, imaging, LPR, or combined capabilities to support your goals.
Choose compatible power, communications, mounting, and equipment options.
Monitor supported traffic and event information from your configured WinstarCloud platform.
Get help with technical specifications, procurement, installation planning, and project questions.
Winstar can help customers plan equipment selection, financing, professional installation, and the operational requirements behind a connected system.
Tell us about your project, roadway, and preferred equipment configuration. Our team can help you evaluate the Winstar Community Speed Radar LPR Camera System and prepare a quotation.
