Winstar Road Supply is a leader in traffic-safety technology, delivering commercial-grade camera systems engineered to improve property security, deter crime, and strengthen site oversight. Our mission is to provide reliable, all-weather monitoring solutions backed by professional US-based support.

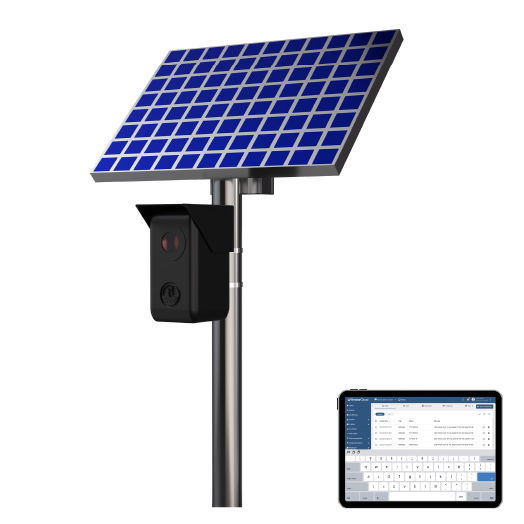

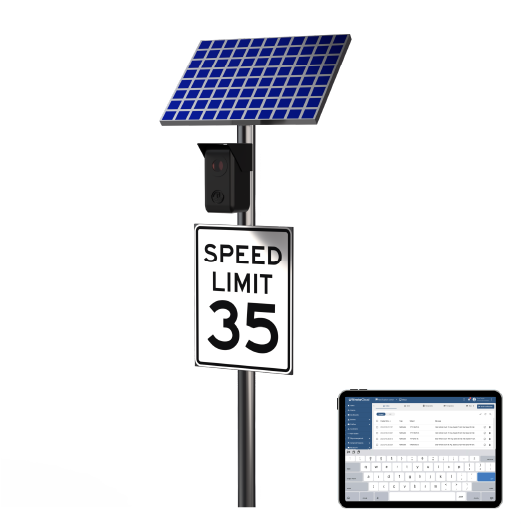

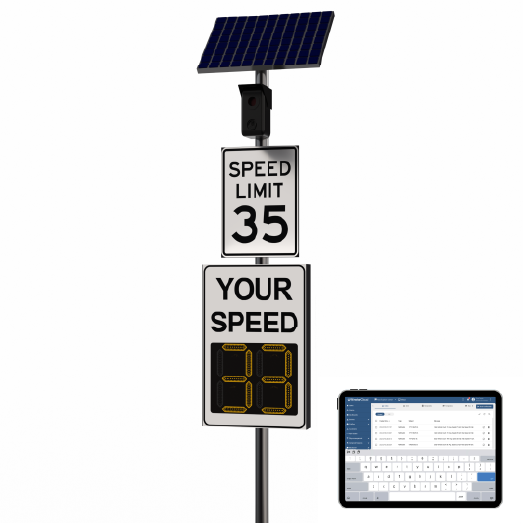

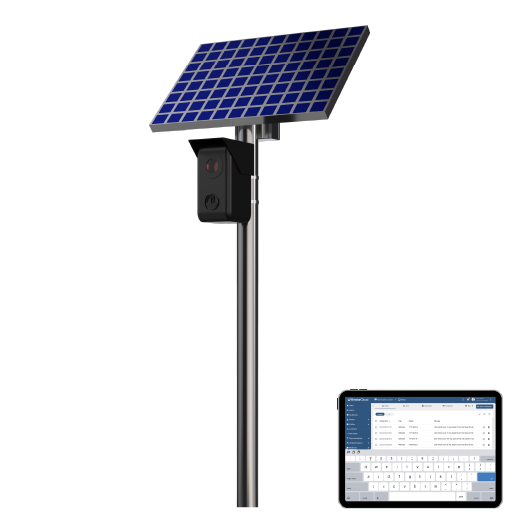

The Winstar Commercial LPR Traffic Camera System uses advanced ALPR (Automated License Plate Recognition) with high-definition imaging to capture accurate plate reads across multiple lanes—day or night, in any weather. Optimized low-light performance and infrared illumination ensure clear, consistent video capture around businesses, warehouses, campuses, parking areas, and commercial facilities. Businesses can configure the system for traffic calming, entrance monitoring, pedestrian safety, parking oversight, or general property security. This system is fully upgradeable — allowing commercial users to begin with camera monitoring or license plate recognition (LPR) today, and later add radar for complete speed data collection and stronger enforcement support.

With IP65-rated weather protection, AC or solar power options, and secure web-based control, this system delivers dependable results and is fully expandable to meet any traffic safety or enforcement need.

The system offers flexible mounting options and can be installed on nearly any suitable round pole, including a wide range of pole diameters and heights. Mounting brackets can be configured for larger-diameter poles, while the camera can be positioned to accommodate the specific roadway, viewing distance, and site conditions.

For long-term reliability and high-volume operation, we recommend A/C Wired power with a direct ethernet connection, installed by a Winstar Professional Installation Partner or a qualified local contractor. Please review our Recommended Installation Guide and Specifications.

Each Winstar Commercial LPR Traffic Camera System is custom made to order, please allow 1-3 weeks lead time.

Technical Specifications

Recommended Installation Guide

Winstar™ Commercial LPR Traffic Camera System

1 Year Free WinstarCloud Platform Subscription

1 Year Free 4G/5G Cellular Data Plan

Camera / Imaging:

• 12.3MP Sony IMX477 High-Resolution Sensor
• Full HD 1920×1080 Pixel Capture
• Low-Light Optimized; Optional IR Night Vision
• C-CS Mount, Motorized Telephoto Lens, PTZ (Pan-Tilt-Zoom) Module
• 4X Motorized Zoom; Day/Night Operation
• Optional Extended Zoom or Thermal Imaging Lens
• Supports Up To 4 Traffic Lanes (Standard: 2 Lanes)

ALPR (Automated License Plate Recognition):

• Hybrid Server & On-Device ALPR Rear Plate Recognition
• Optional Front Plate Recognition
• Optional Red Light Enforcement

Infrared Illuminator:

• 850 nm Infrared Light (Invisible to Naked Eye)
• 12 High-Power LEDs
• 90° Wide Beam Coverage
• Illumination Range Up to 65 Ft (20 M)
• Automatic Dusk-to-Dawn Operation
• IP67 Aluminum Housing With Reinforced Glass

Power Options:

• A/C Wired

• Battery / Solar (100W or 200W Panel, 12V 100Ah LiFePO₄ Battery with Built-In 100A BMS, 15,000+ Deep Cycles)

Communications:

• Wi-Fi 802.11 b/g/n
• GSM/Cellular 3G/4G/5G (2G Compatible)
• Standard SIM Slot
• 100 BASE-TX Wired Ethernet
• Optional Starlink Satellite Internet
• 1 Year Free 4G/5G Cellular Data Plan

Mechanical / Environmental:

• Camera Housing: IP65 Aluminum (White/Gray or Black)
• Camera Weight: 4lbs
• Control Enclosure: IP65 Galvanized Steel, 16"×12"×10", Thermostat & Fan-Controlled, White or Black Finish
• Operating Temperature: -40°F to 185°F

WinstarCloud:

• 1 Year Free WinstarCloud Platform Subscription

• View, Export, and Monitor All Collected Data in Real-Time From Any Internet-Connected Device.

Warranty:

• 2-Year System Warranty

• 1-Year Battery Warranty
