Winstar Road Supply is a leader in traffic safety solutions, offering digital radar speed signs engineered for safer roads and communities. Our mission is to enhance road safety by providing real-time information to drivers and promoting better road behaviors.

The results of using Winstar Road Supply's radar speed signs are impressive, with speed reductions of up to 25% and overall compliance with speed limits increasing by up to 70%.

Winstar Road Supply is known for its unwavering commitment to quality and durability, complying with MUTCD and ISO 9001 standards. Our radar speed signs are resilient, enduring, and connected, making them a great investment in promoting road safety.

Each Winstar 18 Digital Radar Speed Sign is custom made to order, please allow 1-4 weeks lead time plus 1 week for freight shipping due to size and weight.

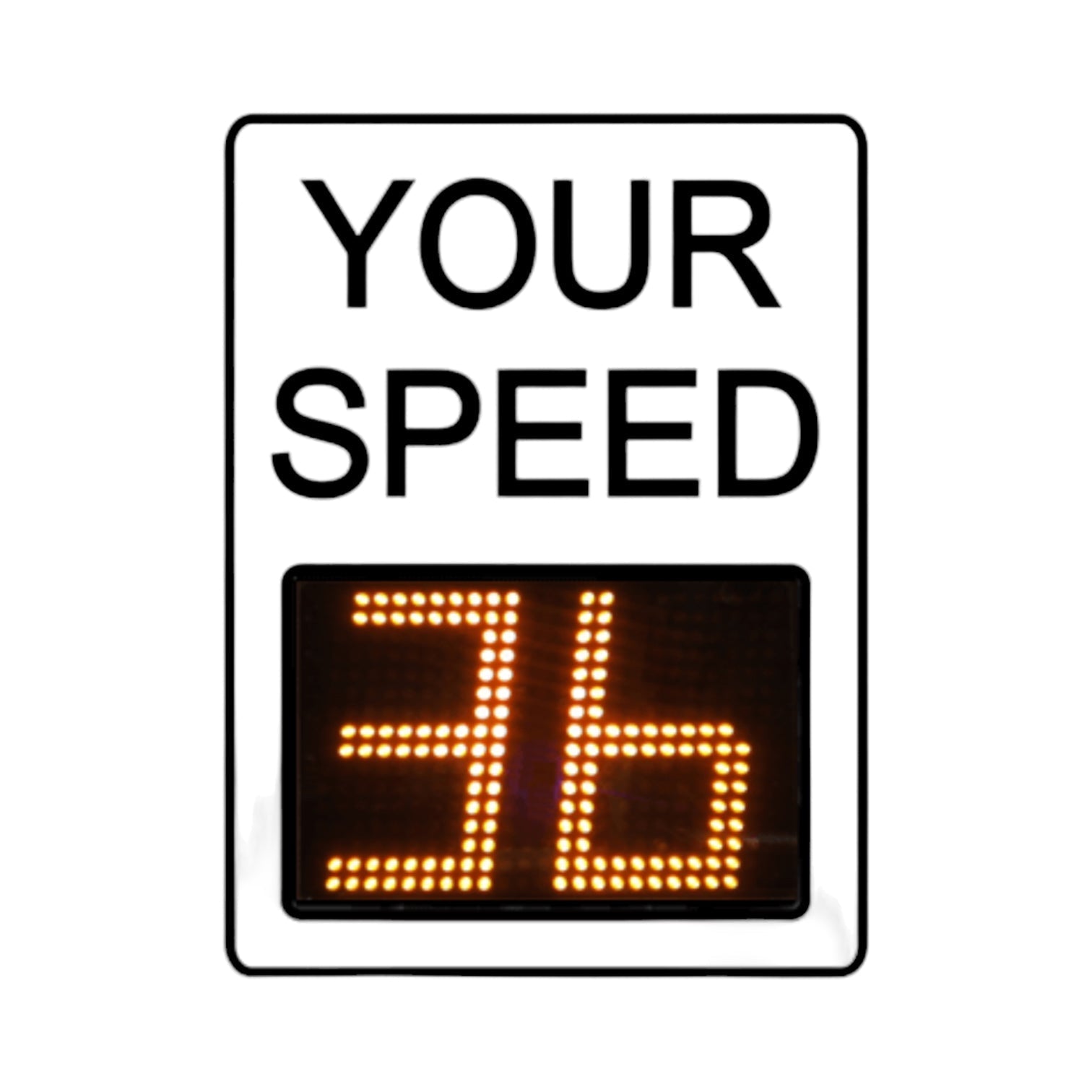

Winstar™ 18 Digital Radar Speed Sign 36" x 48" (34.5" LED Display)

LED Digit Size: 18" Digits

LED Display: 18.5" x 29" / 34.5" Diagonal

LED Configuration: High Intensity Amber LED (18" Digits) or High Intensity Green - Red LED (18" Digits)

Display LEDs
• 2 Digits, High Intensity LEDs (Up to 100,000 Hours)
• Automatic Intensity Ambient Adjustment, Easily Visible Up To 1,000+ Feet

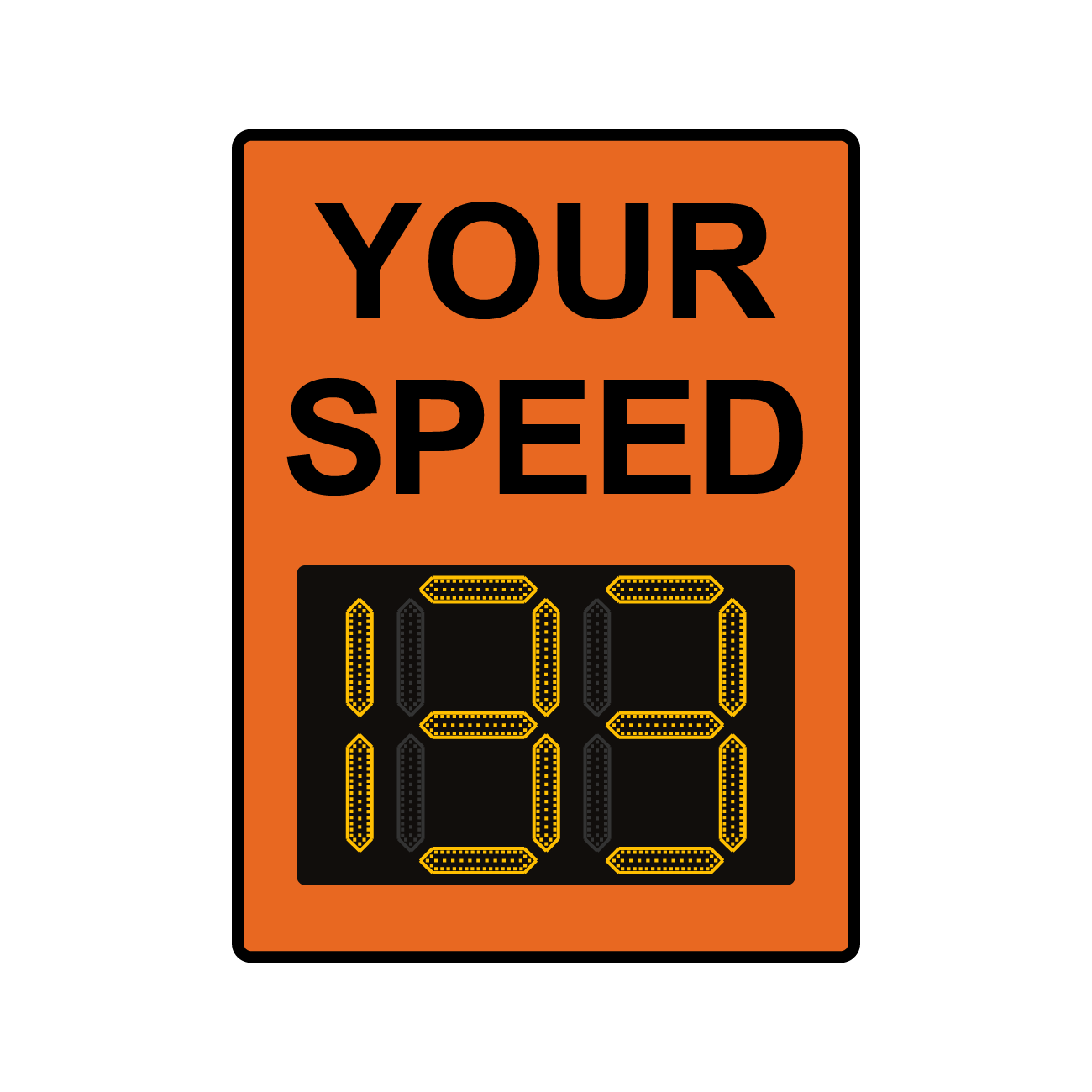

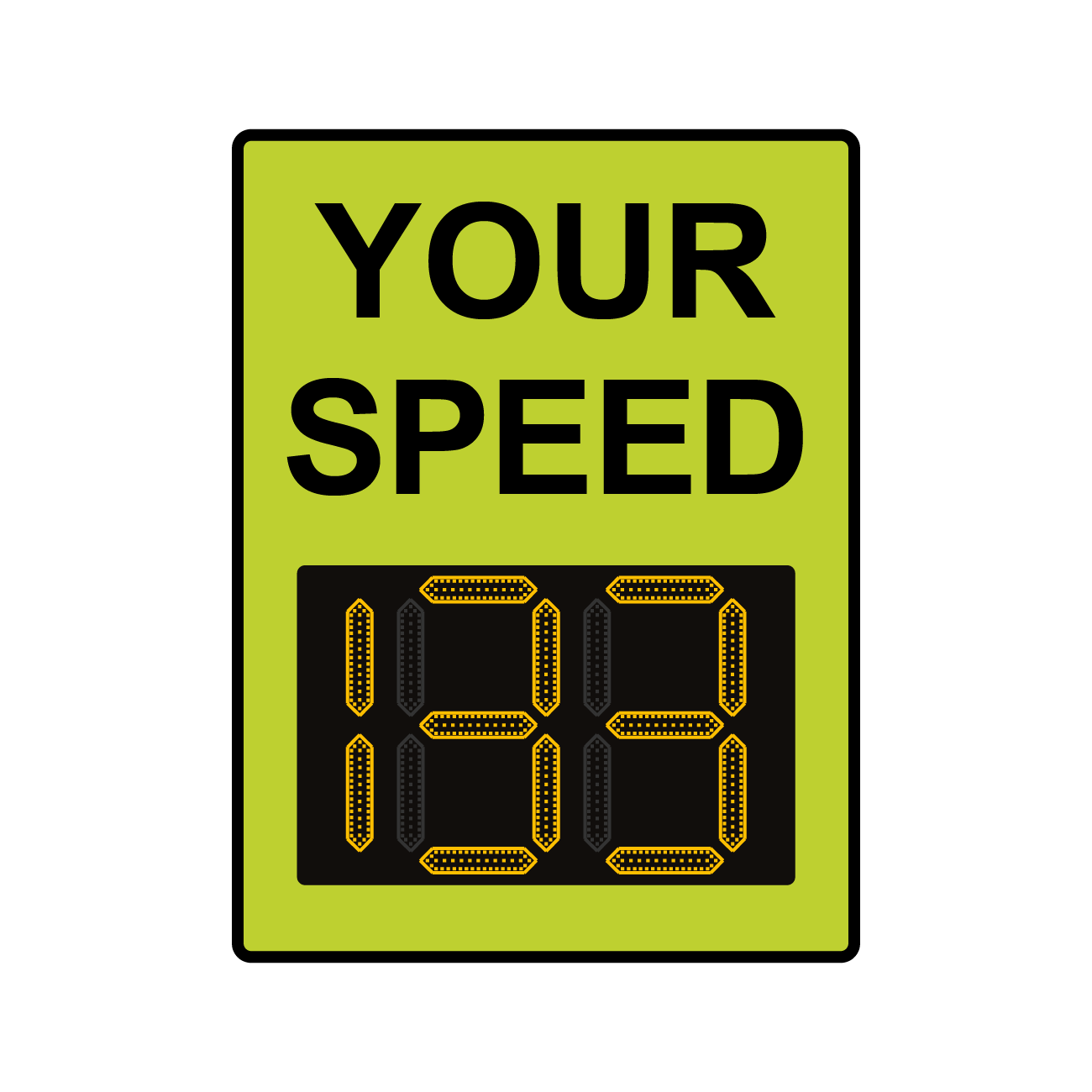

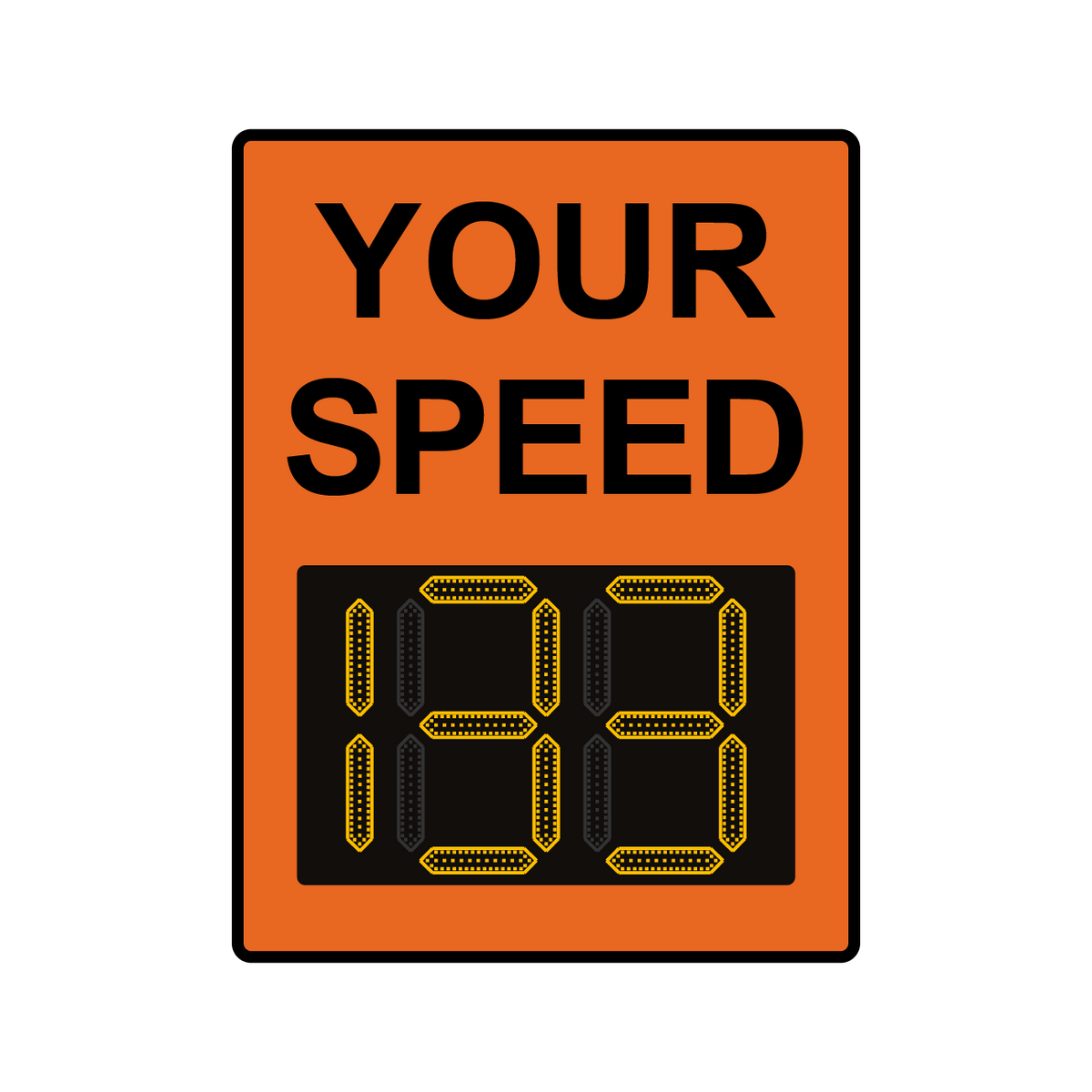

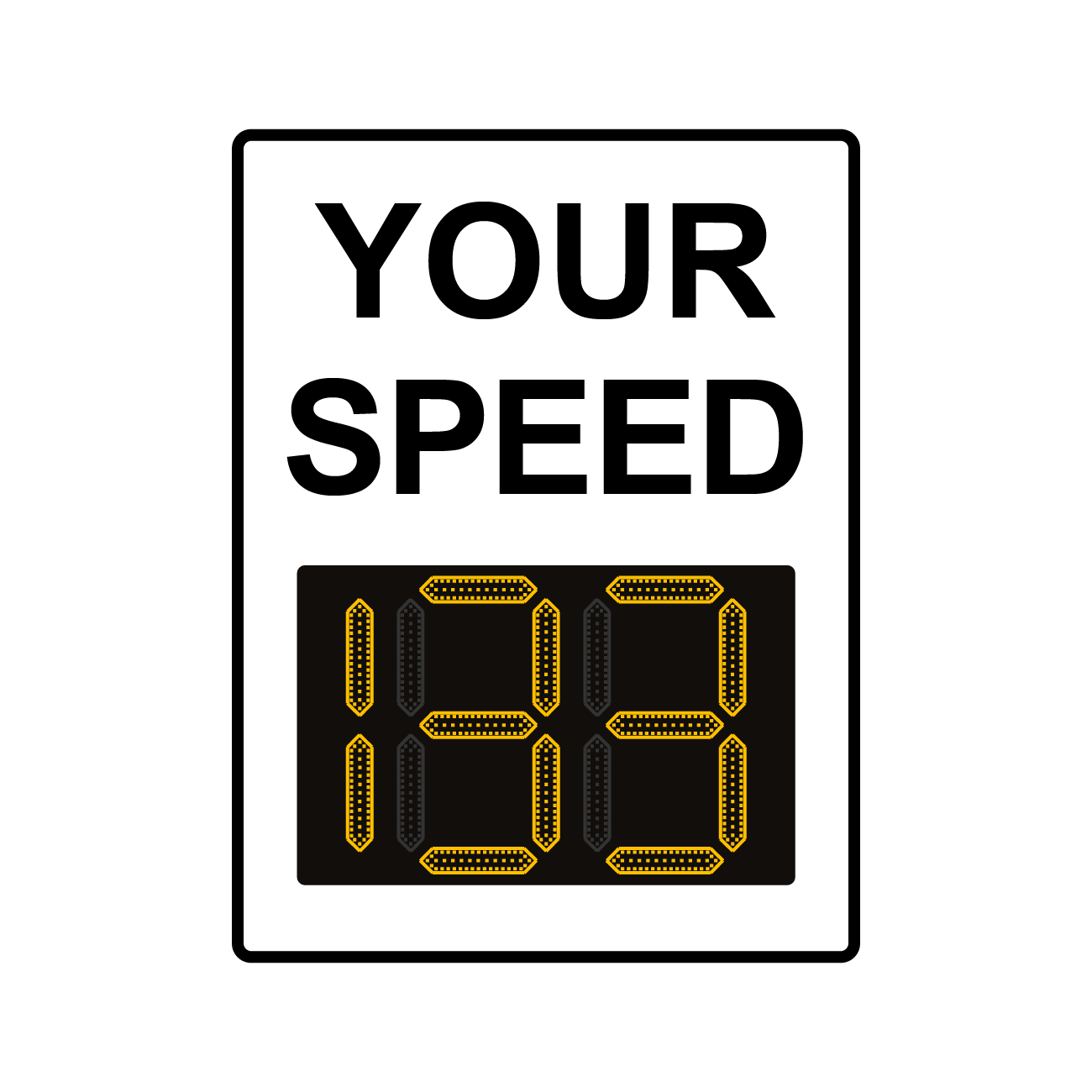

• Optional Add-on: 2 Digits Plus Star (Example 4*5) or 3 Digits

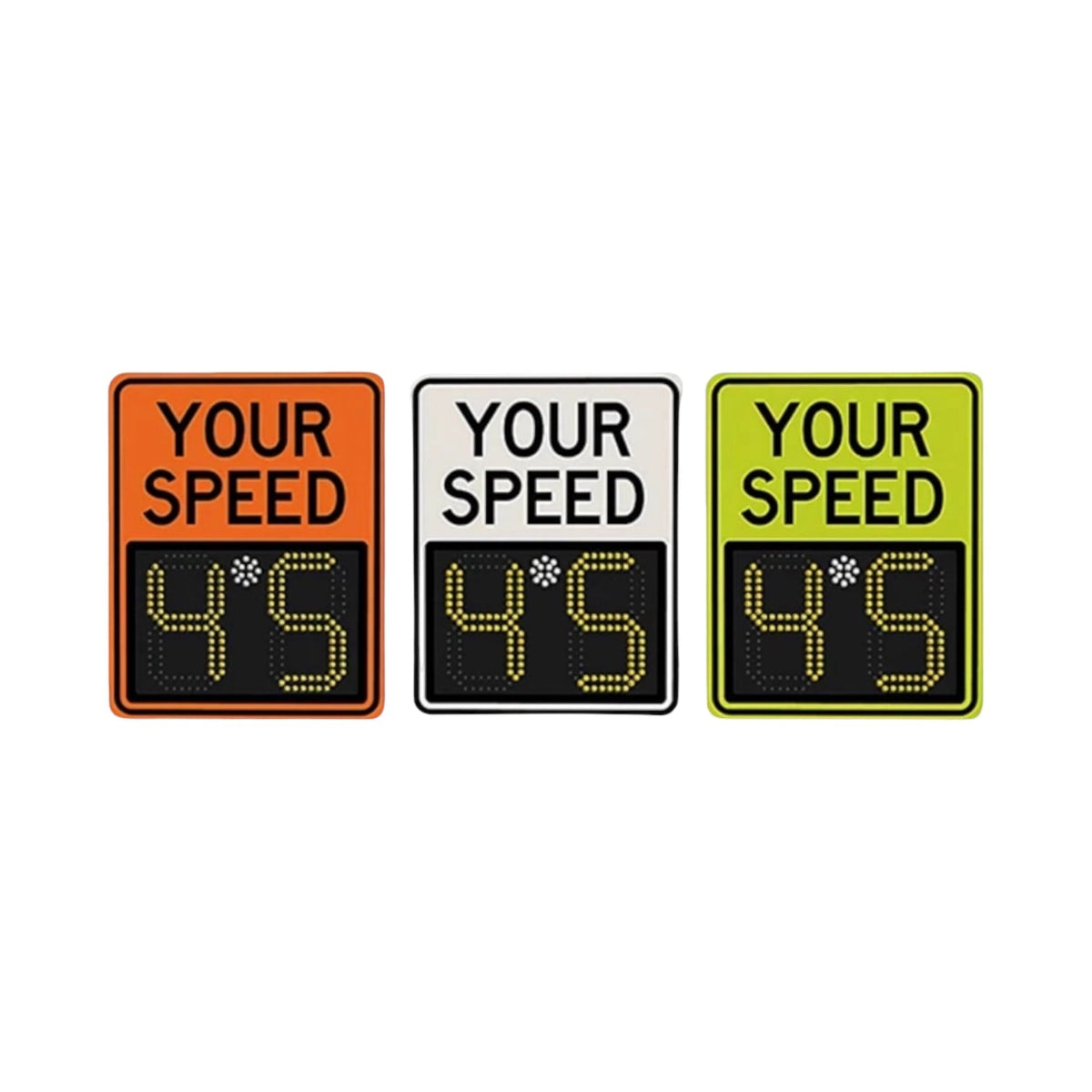

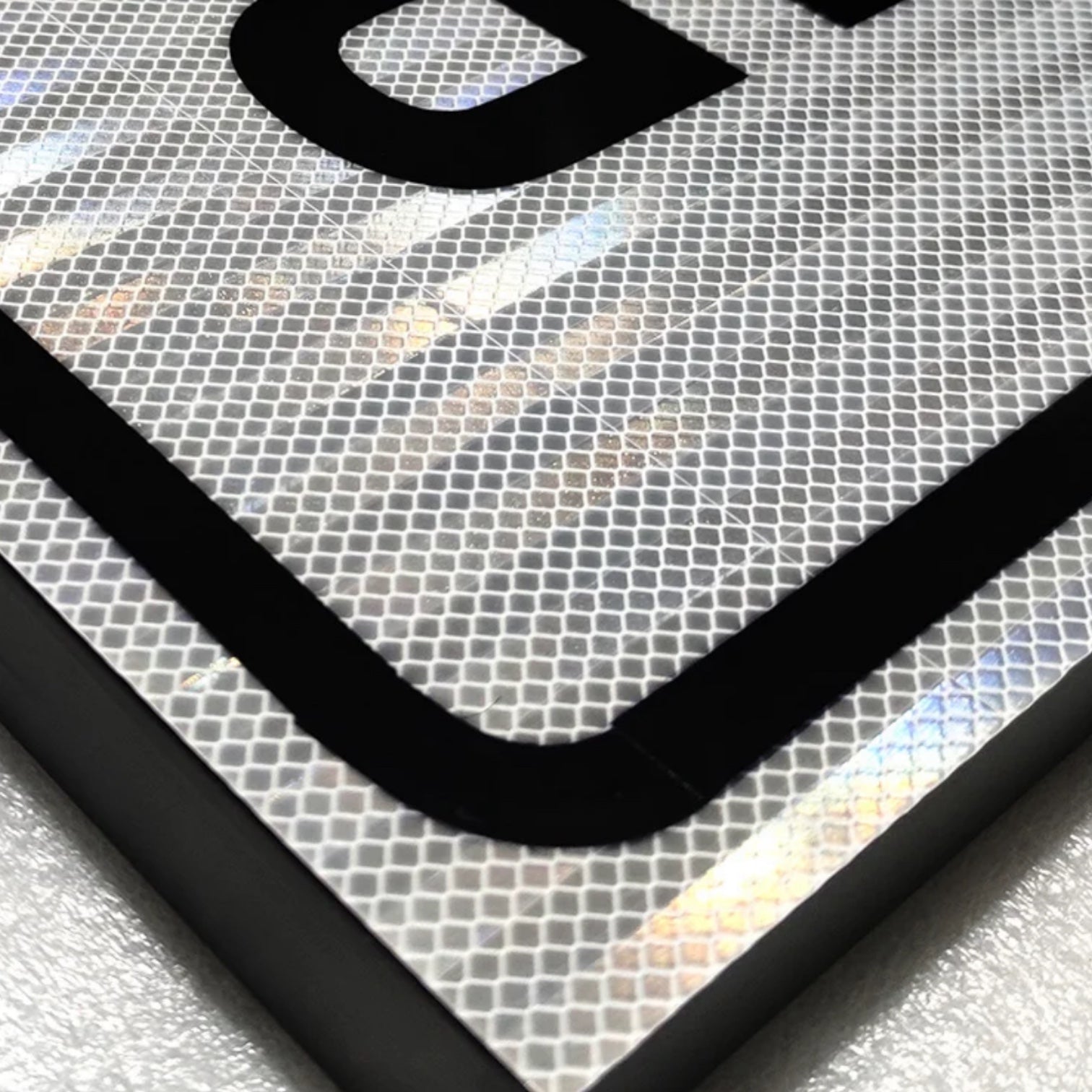

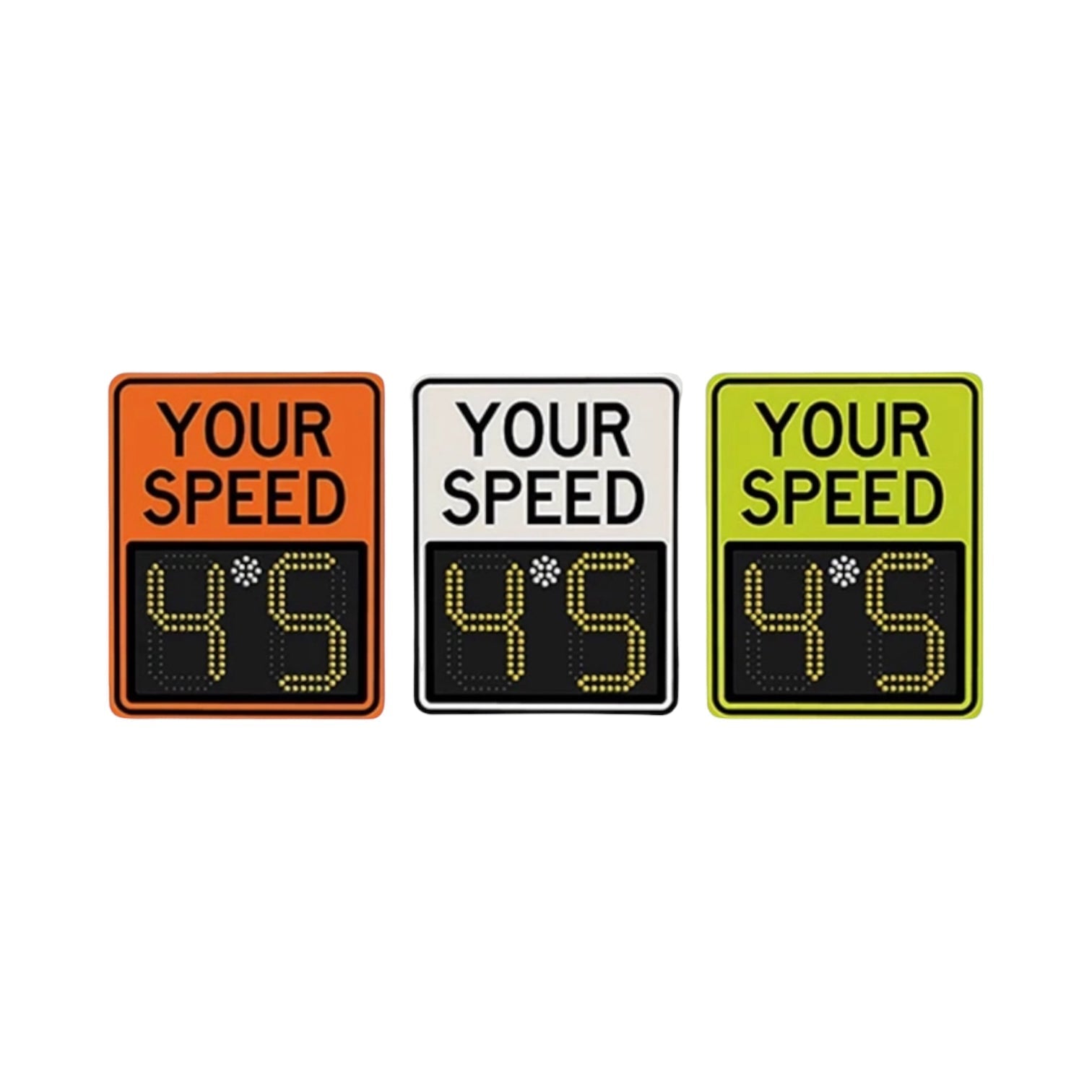

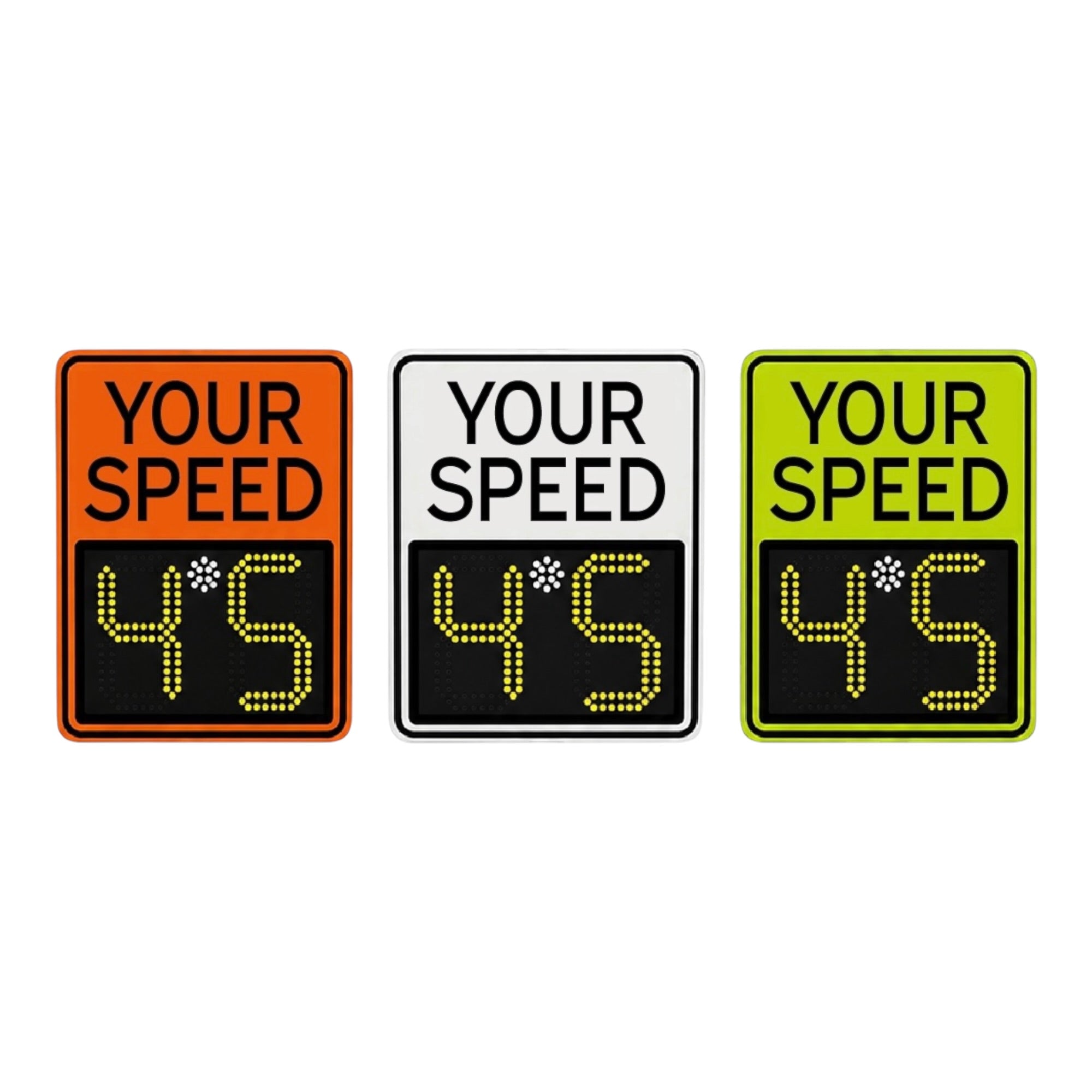

Sign Color: Diamond Grade Reflective Aluminum (White, Yellow, Orange, or Lime Green)

Sign Text: YOUR SPEED or Custom Text

Smart Connectivity: Bluetooth Remote Control

Data Storage: Removable Micro-SD Card w/ USB-A Adapter

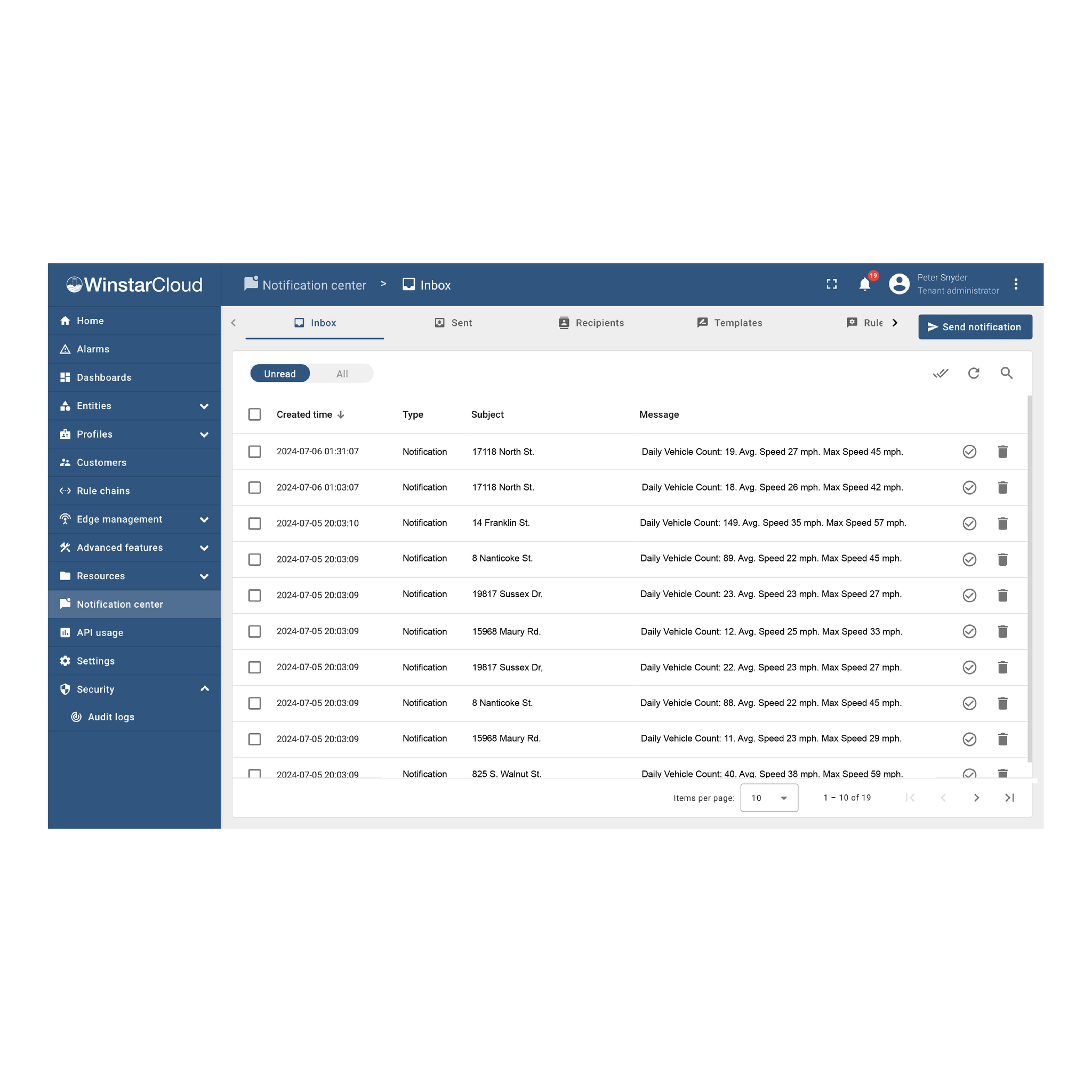

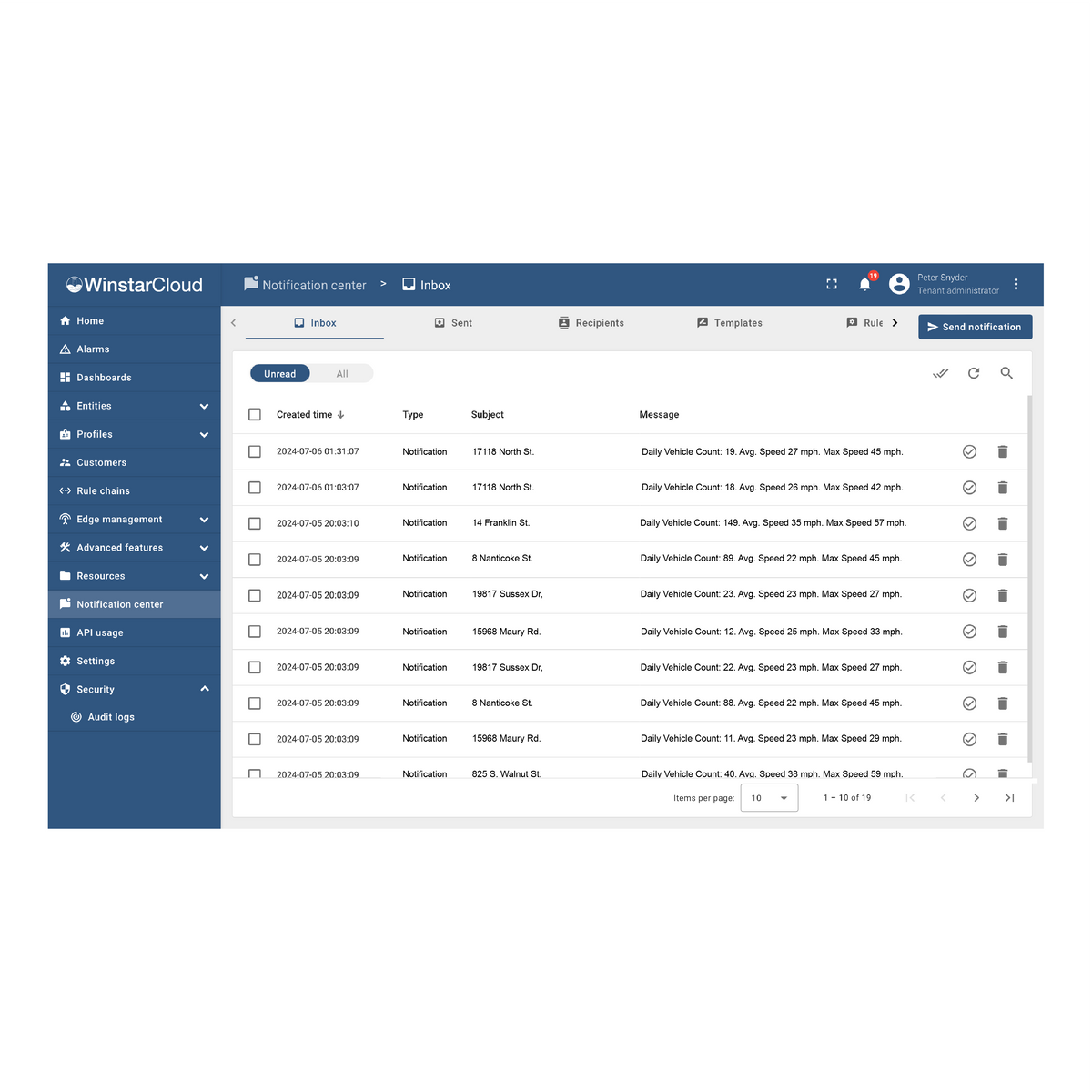

WinstarCloud & 4G/SIM Smart Connectivity: WinstarCloud Platform w/ 1 Year Free WinstarCloud Subscription Included ($149/year / 15 Devices). 4G/5G SIM Data Plan (Verizon, Xfinity Mobile, T-Mobile, or AT&T. Other providers are compatible). Monthly Data Plan & Provider Rates Apply.

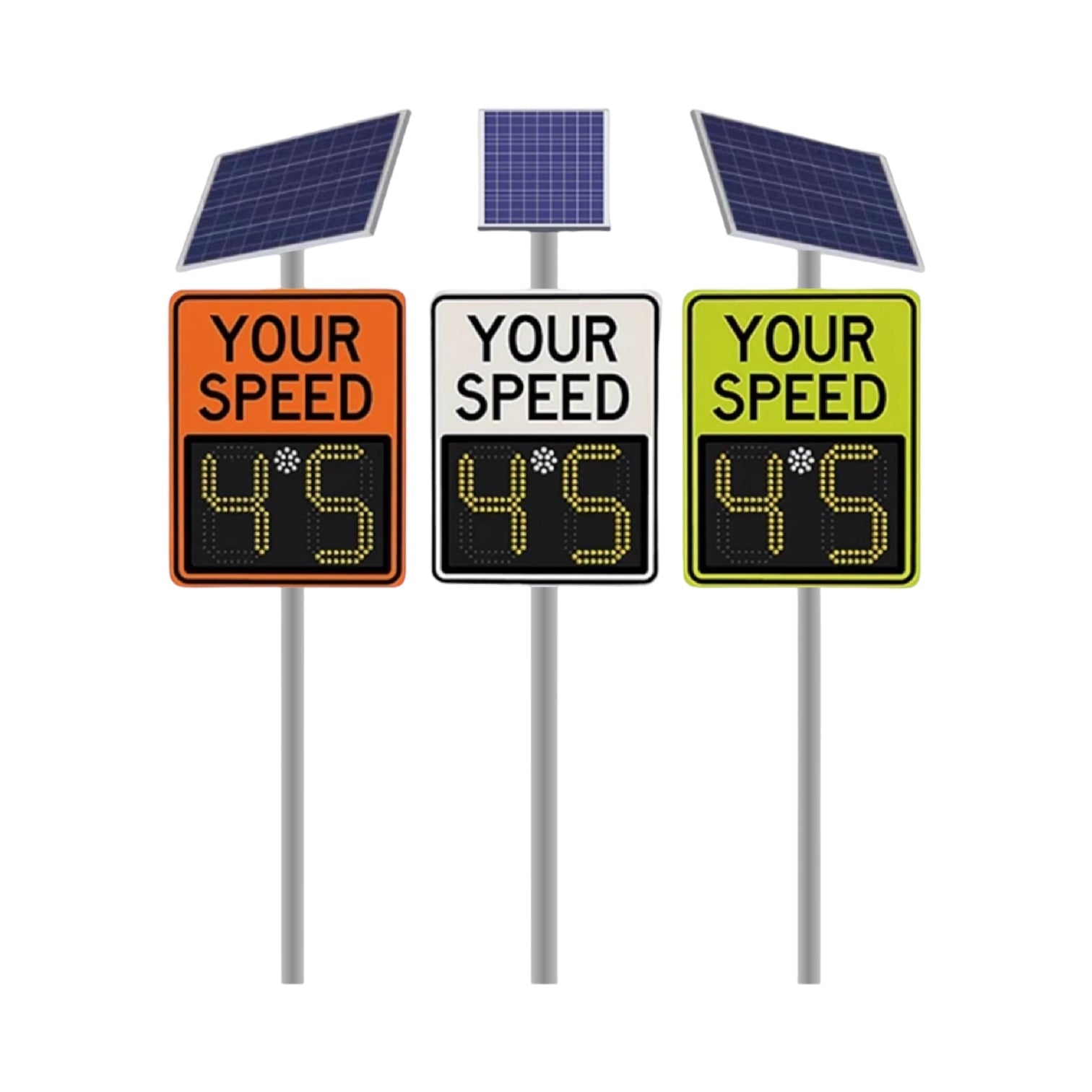

Power Options: A/C Wired or Battery Operated w/ Solar Panel

Mount Options: Universal Mount Set Included. Optional Add-on: Battery Power Model Pivot Mounting Bracket, AC Power Model Pivot Mounting Bracket, or Universal Pivot Mounting Bracket

Working Temperatures: -40°F - 160°F

Visible Distance: 1,500 Feet

Waterproof: IP53

Warranty: 2-Year Sign Warranty, 1-Year Battery Warranty

Polycarbonate Display Cover
• Thick Protective Sheet IP53 Waterproof Sealed Display Area Cover
• Vandalism, Abrasion, Graffiti, and Shatter Resistant
• UV Protection

Radar
• Type: K Band, Single Direction Doppler Radar, FCC Part 15 Compliant; No License Required
• Sensor Range: Detects Vehicles Up to 1,200 Feet
• Beam Width: 12 Degrees, +/- 2 Degrees
• Operating Frequency: 24.125 GHz, +/- 50 MHz
• Accuracy: +/- 1.0 MPH
• Speed Detection Range:1 - 133 MPH

Power Options

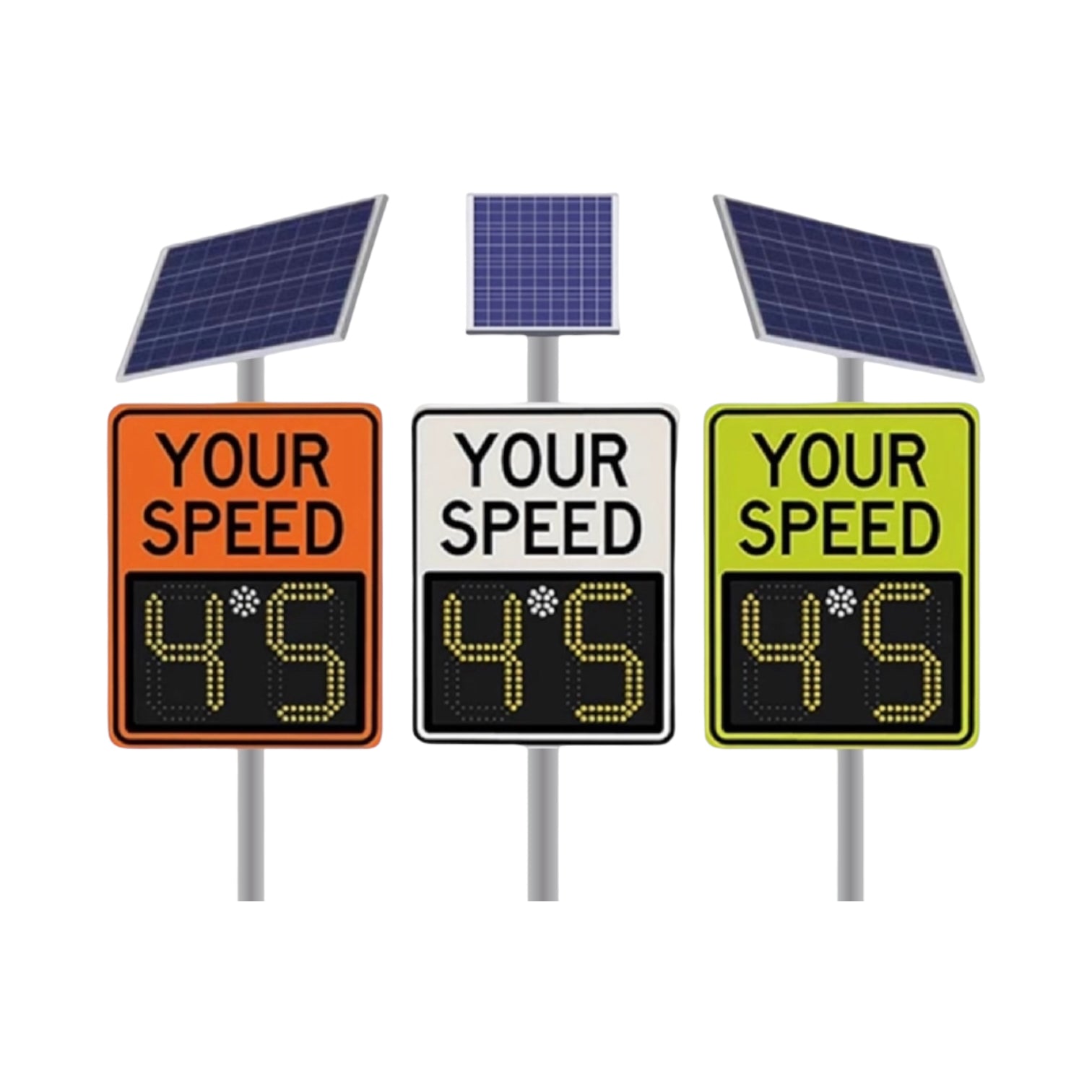

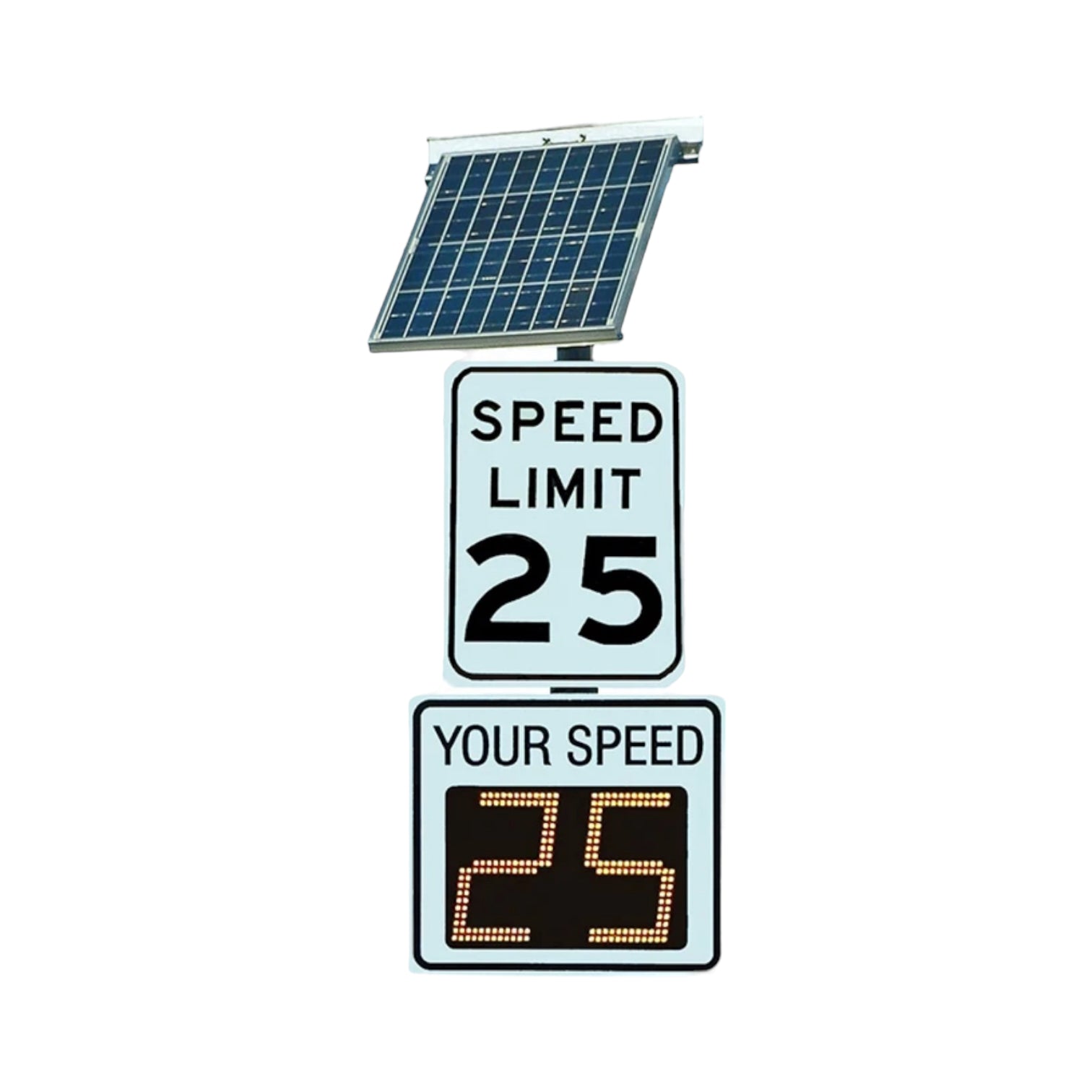

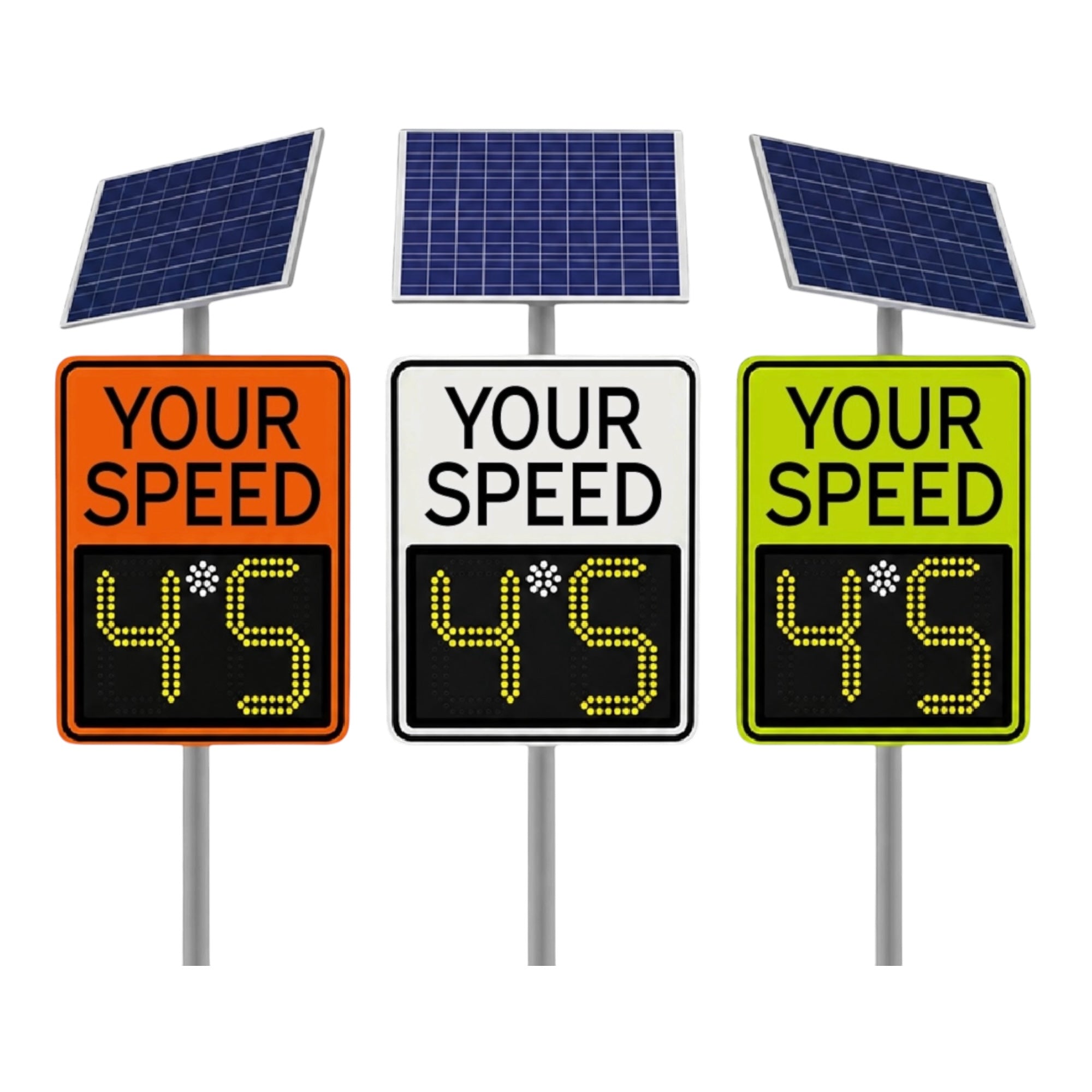

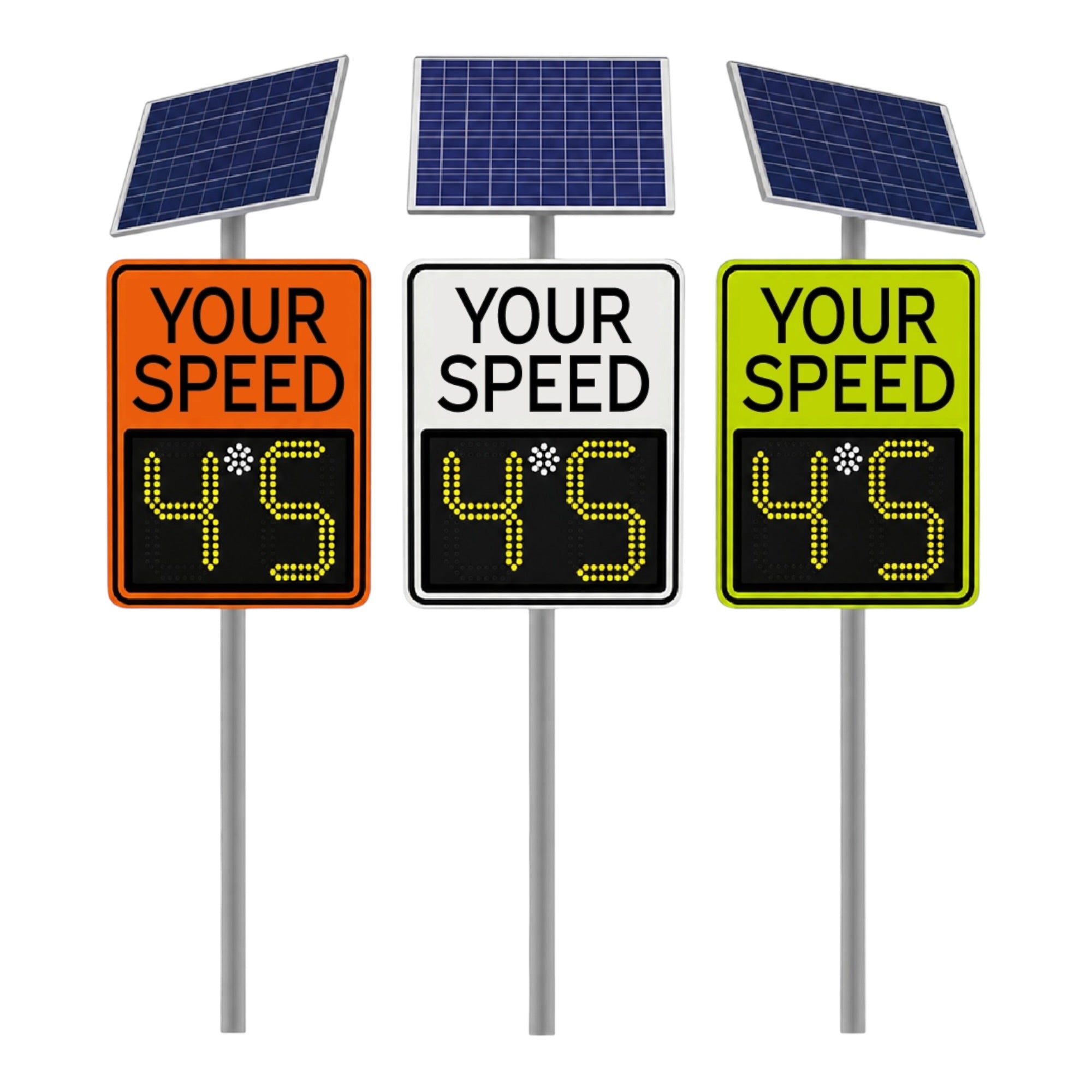

Battery / Solar Powered
• Solar Panel Output: 60 Watt Standard, 80 Watt Optional
• Power Supply: 12-Volt, 17 Amp/Hour UL-Recognized AGM. +/- 14 Days Backup Operation
• Power Consumption: < 2.0 Amps in Active Mode; Idle Mode < 1/2 Watt
• Circuit Breaker: Multi-Circuit, 3x10 Amp Fuses
AC Powered
• Power Supply: A/C Hard Wired to 100V-240V Power Supply
• Power Consumption: < 2.0 Amps in Active Mode; Idle Mode < 1/2 Watt;
• Circuit Breaker: Multi-Circuit, 10 Amp Fuse
