The Winstar Pedestrian Crossing Solar LED Traffic Sign 30 in x 30 in is engineered for maximum visibility and reliability to help protect pedestrians in crosswalks, school zones, and community streets. Designed and built to MUTCD and FHWA standards, this solar-powered warning sign delivers high-intensity illumination and long-term durability for professional traffic safety applications.

Each system is built to enhance driver awareness, help reduce pedestrian incidents, and provide long-lasting, maintenance-free operation using efficient solar technology and high-grade reflective sheeting.

Each Winstar Pedestrian Crossing Solar LED Traffic Sign 30 in x 30 in is custom made to order. Please allow 1–3 weeks lead time plus freight shipping due to size and weight.

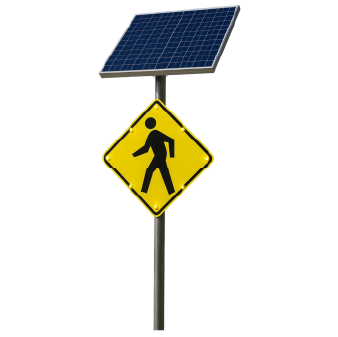

Winstar™ Pedestrian Crossing Solar LED Traffic Sign 30 in x 30 in

MUTCD: W11-2 Pedestrian Crossing Sign
Type: 30" Solar Flashing LED Pedestrian / Crosswalk Traffic Safety Sign
Solar Charging Panel: 13 W / 12 V Monocrystalline
Battery: 12 V / 14 Ah High-Capacity NiMH (Replaceable)
Battery Life Span: 3 – 5 Years
Working Time: Up to 10 – 14 consecutive days after full charge
Working Mode: 24/7 Continuous or Dusk-to-Dawn Operation (Auto Dimming)
Enclosure: Aluminum, IP67 Rated with Clear Film Protective Laminate
Flash Pattern: MUTCD Single Flash (50 ± 5 FPM)
LED Color: Amber, Red, or White
LED Output: 1 W per diode (100,000-hour rated lifespan)
Visible Distance: Over 2,500 feet (day or night)
LED Placement: Mounted within one border unit and along sign legend per MUTCD §2A.07
Illumination: LEDs illuminate the pedestrian symbol and sign border
Sign Color: Diamond Grade Fluorescent Yellow-Green (ASTM Type XI Reflective Sheeting)
Sign Material: 0.08″ Aluminum
Sign Dimensions: 30″ × 30″ Diamond Shape (W11-2 MUTCD Standard)
Background: 3M Diamond Grade Reflective Film (FHWA Minimum Retroreflectivity Compliant)
Charge Controller: Integrated MPPT Controller with LED Status Indicators
Mounting Hardware: Fits 3″ – 4″ diameter posts / pre-drilled 3/8″ holes on 1″ centers
Number of Sides: Single or Double-Sided (Back-to-Back Option Available)
Vandal Resistant: Yes (Tamper-Proof Hardware)

Warranty:

• 3 Year Full System Warranty
• 5 Year LED / Electronics Warranty
• 10 Year Solar Panel Warranty

Please Note: Sign Pole Sold Separately
