Winstar Road Supply is a trusted leader in traffic safety, offering advanced community-focused radar and LPR camera systems designed to calm traffic, improve driver behavior, and protect residents. Built with the same proven technology used in municipal enforcement, the Winstar Community Speed Radar LPR Camera System is tailored for HOAs, private developments, and residential neighborhoods that want effective monitoring without the complexity of city-scale infrastructure.

The system combines Doppler Radar technology with advanced ALPR (Automated License Plate Recognition) to capture clear, high-definition images and precise speed data — day or night, in all weather conditions. Communities can configure the system for data collection, warning letters, or full enforcement with citations, depending on their needs and local guidelines.

With durable IP65-rated weather protection, flexible A/C or solar power options, and secure cloud-based access, the Winstar Community Speed Radar LPR Camera System delivers reliable results and peace of mind. It’s a cost-effective solution to promote safer driving and protect your community.

For long-term reliability and high-volume warning letter or enforcement operation, we recommend A/C Wired power with a direct ethernet connection, installed by a Winstar Professional Installation Partner or a qualified local contractor. Please review our Recommended Installation Guide and Specifications.

Each Winstar Community Speed Radar LPR Camera System is custom made to order, please allow 1-3 weeks lead time.

Technical Specifications

Recommended Installation Guide

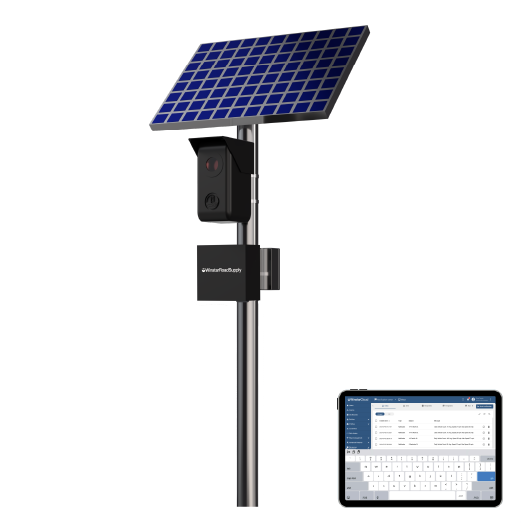

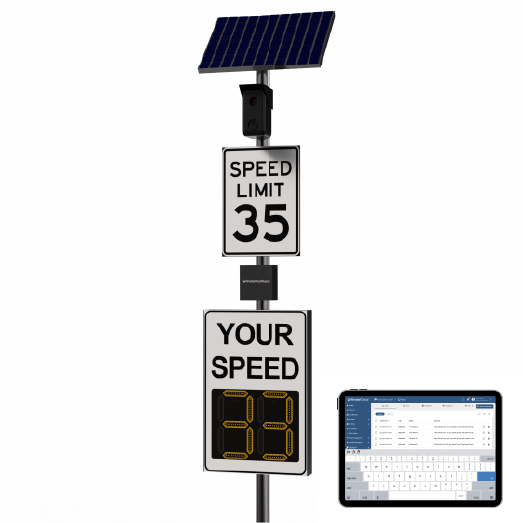

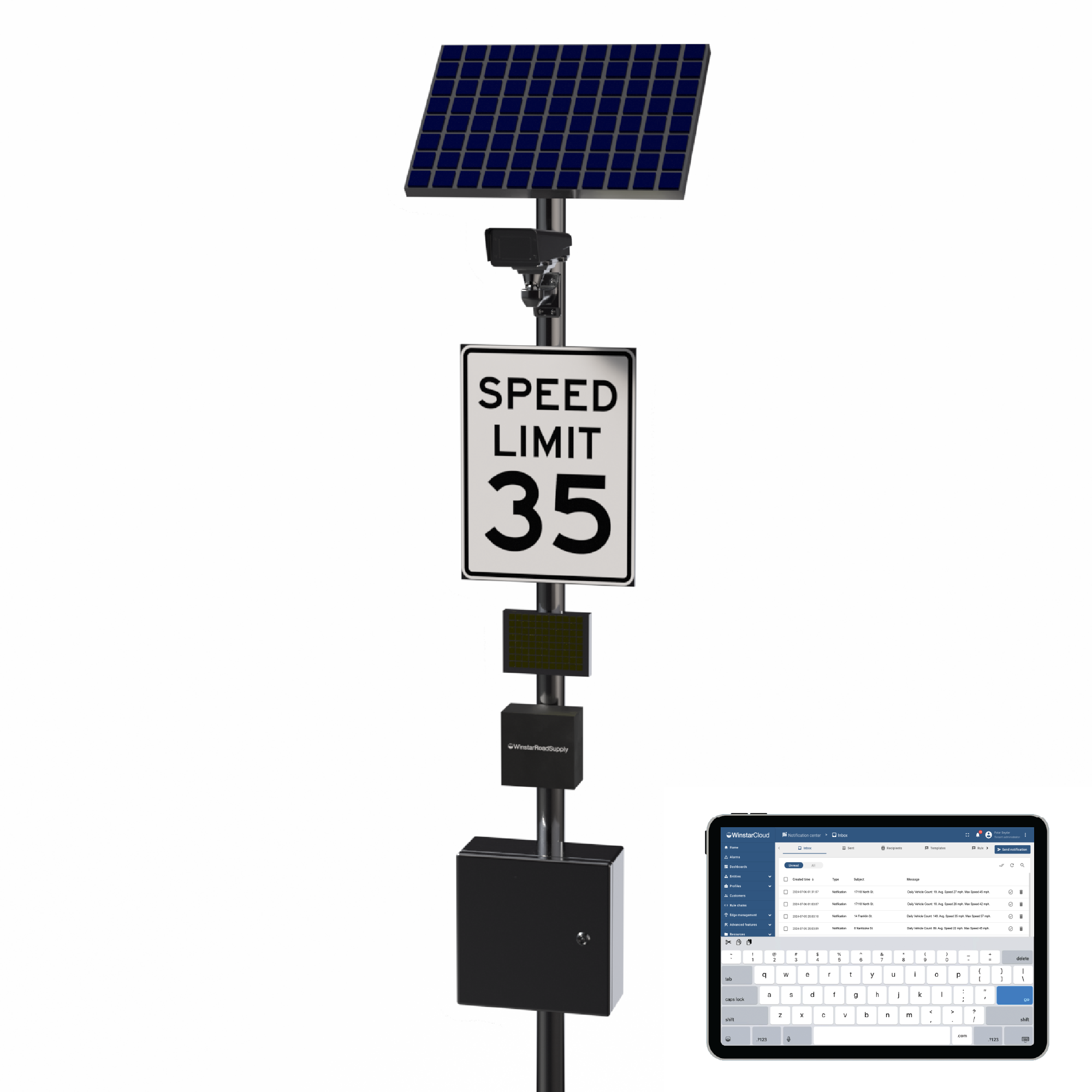

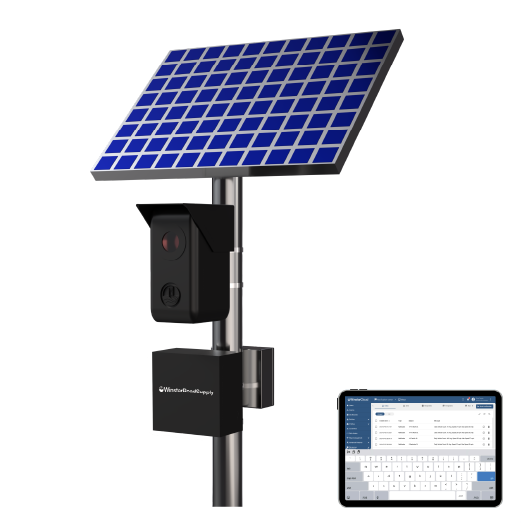

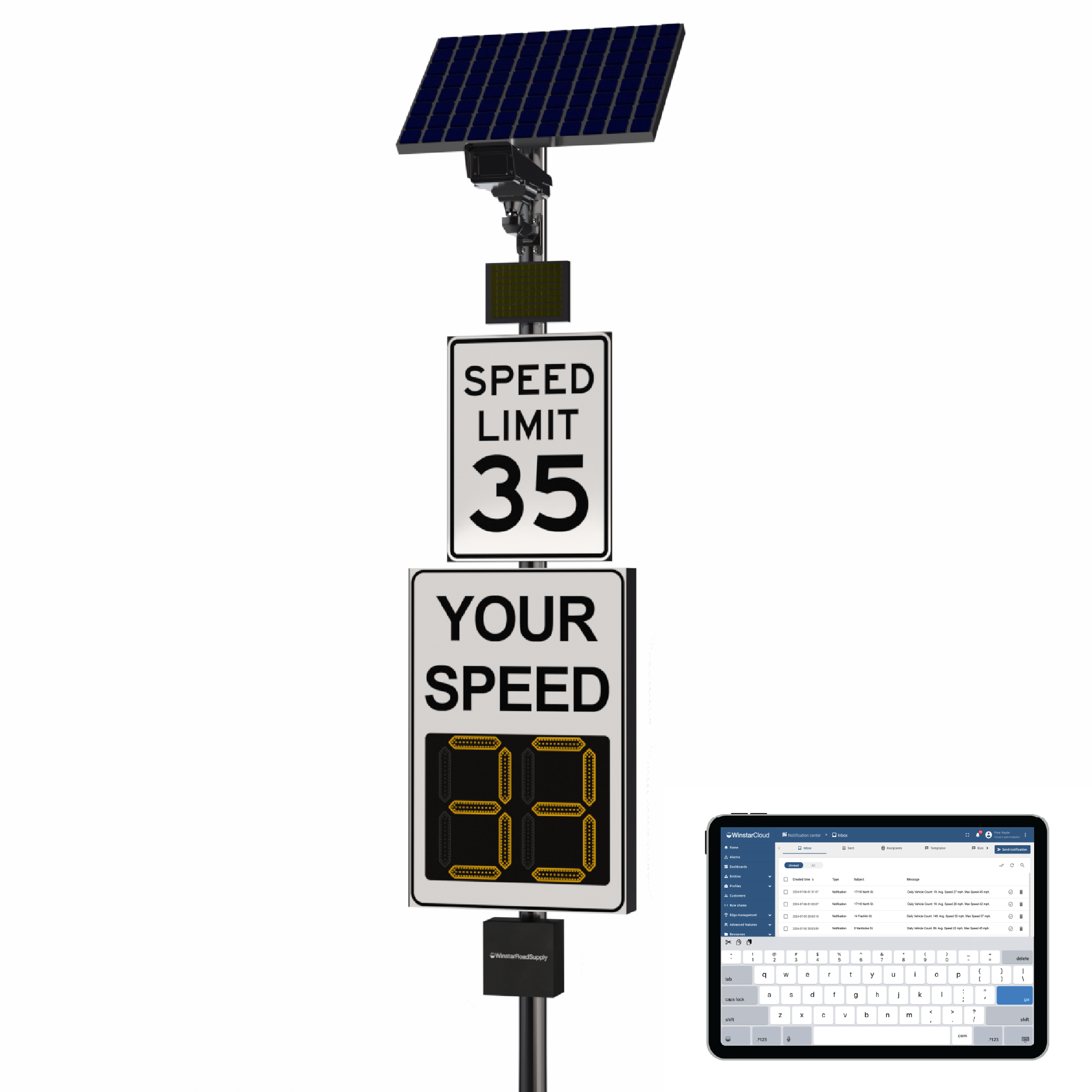

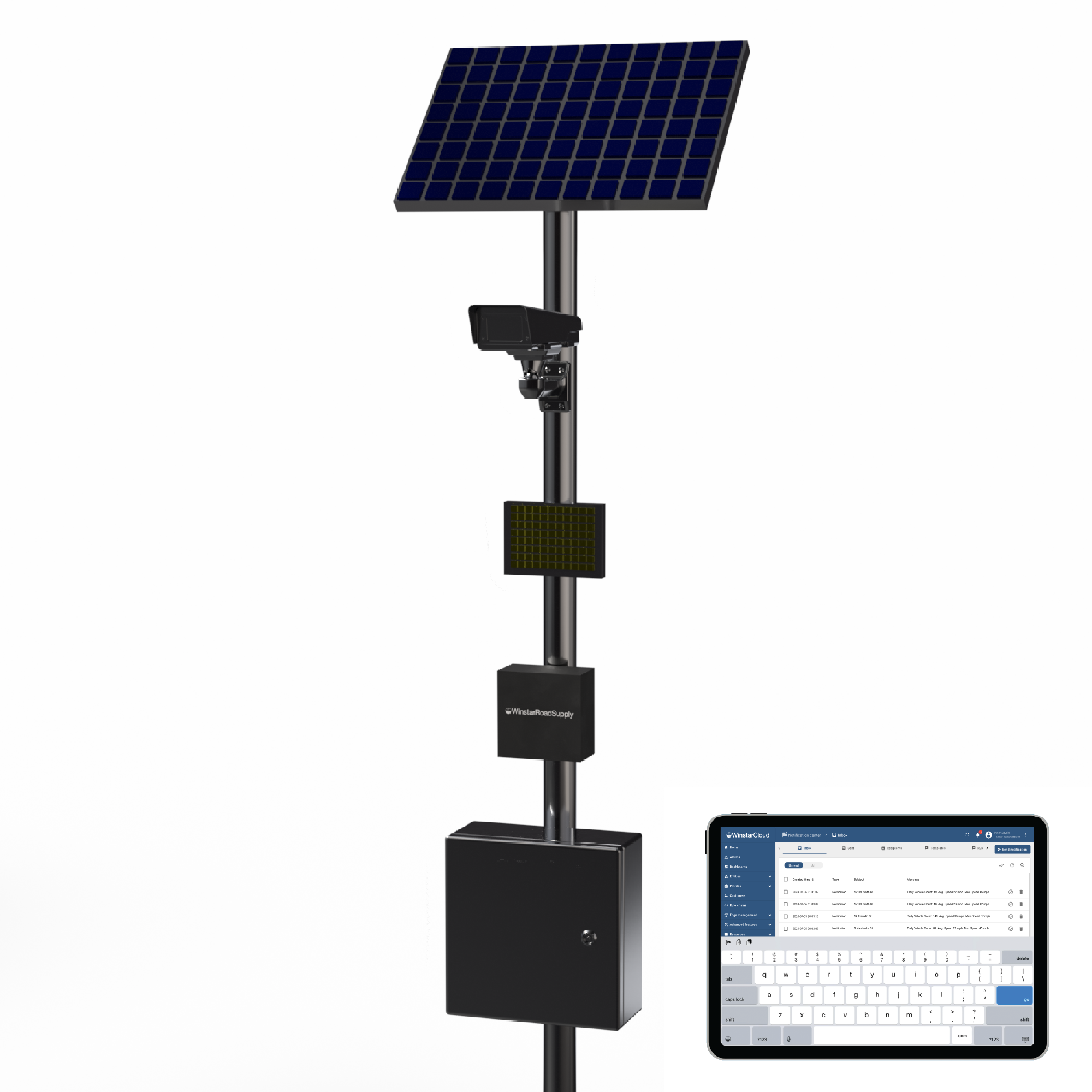

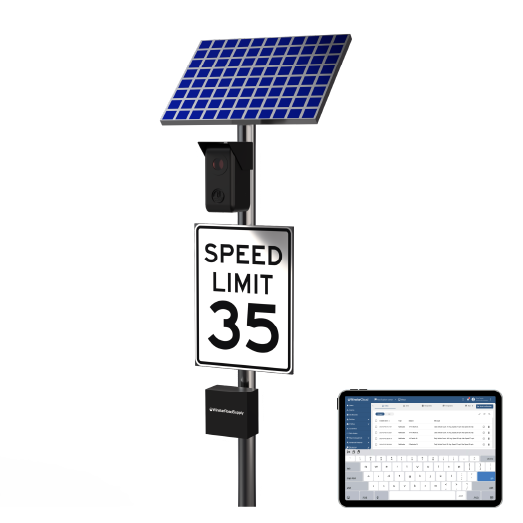

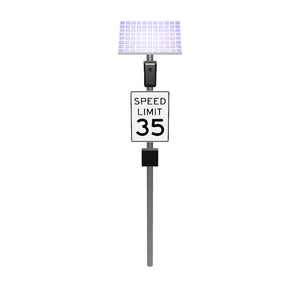

Winstar™ Community Speed Radar LPR Camera System

1 Year Free WinstarCloud Platform Subscription

1 Year Free 4G/5G Cellular Data Plan / Starlink Data Plan

Apple iPad 11" A16 (2025) Wi-Fi 128GB Included

Camera / Imaging:

• 12.3MP Sony IMX477 High-Resolution Sensor
• Full HD 1920×1080 Pixel Capture
• Low-Light Optimized; Optional IR Night Vision
• C-CS Mount, Motorized Telephoto Lens, PTZ (Pan-Tilt-Zoom) Module
• 4X Motorized Zoom; Day/Night Operation
• Optional Extended Zoom or Thermal Imaging Lens
• Supports Up To 4 Traffic Lanes (Standard: 2 Lanes)

Radar Sensor:

• Doppler Radar With Onboard Signal Processing for Motion, Speed, Direction, and Range Reporting
• Detection Range: 1–100 m (3–328 ft)
• Speed Measurement Up to 560 km/h (348 mph)
• Inbound/Outbound Detection
• Range Reporting Up to 60 m (197 ft)
• Beam Width: 20° Horizontal × 24° Vertical (-3 dB)
• Power Consumption: 1.7 W Active, <0.2 W Hibernate
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Certifications: FCC/IC Modular Approval, CE Approved

ALPR (Automated License Plate Recognition):

• Hybrid Server & On-Device ALPR Rear Plate Recognition

• Optional Front Plate Recognition
• Optional Red Light Enforcement

Infrared Illuminator:

• 850 nm Infrared Light (Invisible to Naked Eye)
• 12 High-Power LEDs
• 90° Wide Beam Coverage
• Illumination Range Up to 65 Ft (20 M)
• Automatic Dusk-to-Dawn Operation
• IP67 Aluminum Housing With Reinforced Glass

Power Options:

• A/C Wired

• Battery / Solar (100W or 200W Panel, 12V 100Ah LiFePO₄ Battery with Built-In 100A BMS, 15,000+ Deep Cycles)

Communications:

• Wi-Fi 802.11 b/g/n
• GSM/Cellular 3G/4G/5G (2G Compatible)
• Standard SIM Slot
• 100 BASE-TX Wired Ethernet
• Optional Starlink Satellite Internet
• 1 Year Free 4G/5G Cellular Data Plan / Starlink Data Plan

Mechanical / Environmental:

• Camera Housing: IP65 Aluminum (White/Gray or Black)
• Camera Weight: 4lbs
• Radar Enclosure: IP65 ABS (White/Gray or Black)
• Control Enclosure: IP65 Galvanized Steel, 16"×12"×10", Thermostat & Fan-Controlled, White or Black Finish
• Operating Temperature: -40°F to 185°F

WinstarCloud:

• 1 Year Free WinstarCloud Platform Subscription

• View, Export, and Monitor All Collected Data in Real-Time From Any Internet-Connected Device.

Warning Letter & Citation Options:

• Self-Managed – Review violation records, then generate and print warning letters or citations directly from your WinstarCloud dashboard, using your own letterhead and mailing process.

• Winstar-Managed – Let Winstar handle the processing for you. We can generate, print, and mail warning letters or citations on your behalf at a set per-item rate, ensuring fast and compliant delivery. We can also collect payment on your behalf. This option can be changed at any time.

Warranty:

• 2-Year System Warranty

• 1-Year Battery Warranty
