Winstar Road Supply is a leader in traffic-safety technology, delivering community-grade camera systems engineered to improve neighborhood security, deter crime, and enhance peace of mind. Our mission is to provide reliable, all-weather monitoring solutions backed by professional US-based support.

The Winstar Community LPR Traffic Camera System uses advanced ALPR (Automated License Plate Recognition) with high-definition imaging to capture accurate plate reads across multiple lanes—day or night, in any weather. Optimized low-light performance and infrared illumination ensure clear, consistent video capture around homes, HOAs, schools, and community centers. Neighborhoods can configure the system for traffic calming, entrance monitoring, pedestrian safety, or general community security. This system is fully upgradeable — allowing communities to begin with camera-based traffic monitoring or license plate recognition (LPR) today, and later add radar for complete speed data collection and enhanced enforcement.

With IP65-rated weather protection, AC or solar power options, and secure web-based control, this system delivers dependable results and is fully expandable to meet any traffic safety or enforcement need.

For long-term reliability and high-volume operation, we recommend A/C Wired power with a direct ethernet connection, installed by a Winstar Professional Installation Partner or a qualified local contractor. Please review our Recommended Installation Guide and Specifications.

Each Winstar Community LPR Traffic Camera System is custom made to order, please allow 1-3 weeks lead time.

Technical Specifications

Recommended Installation Guide

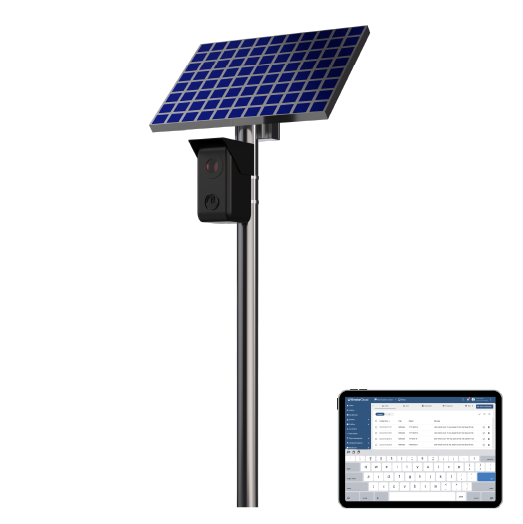

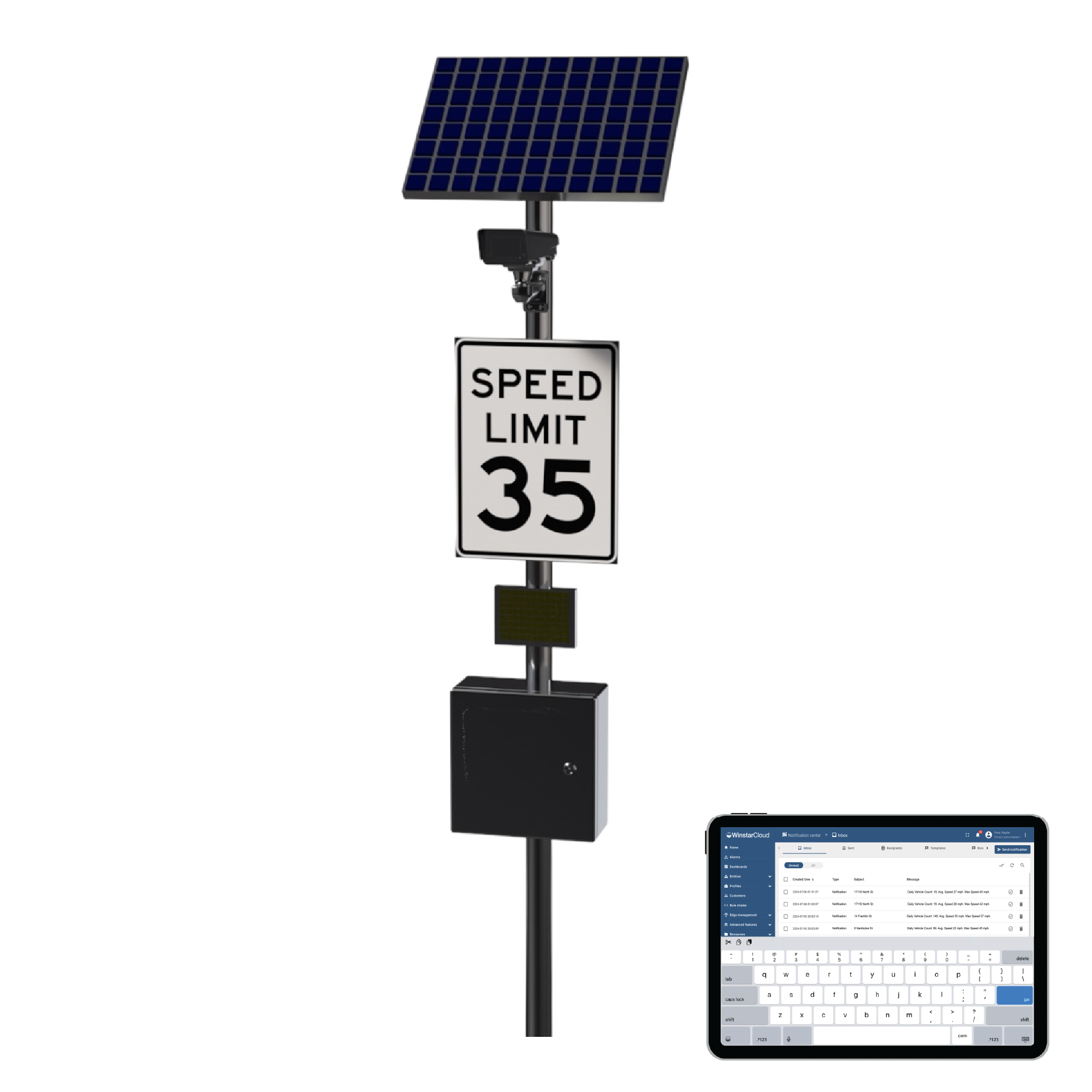

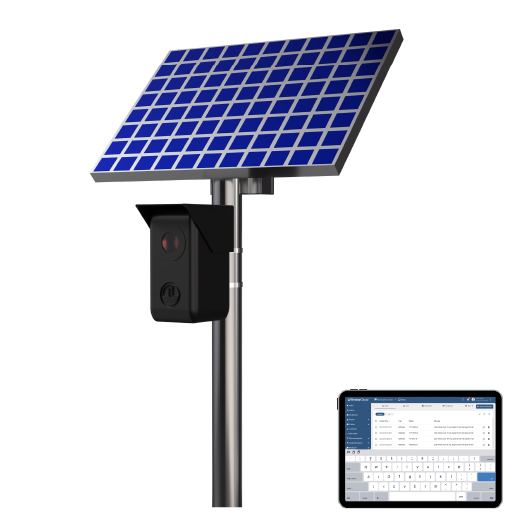

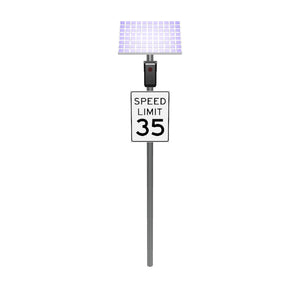

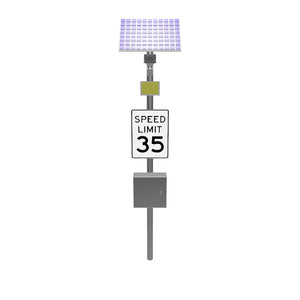

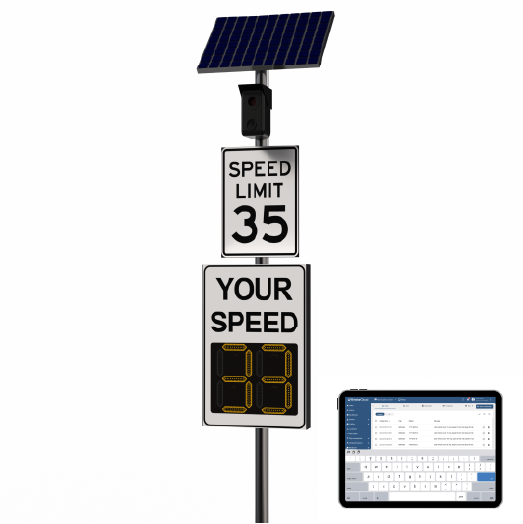

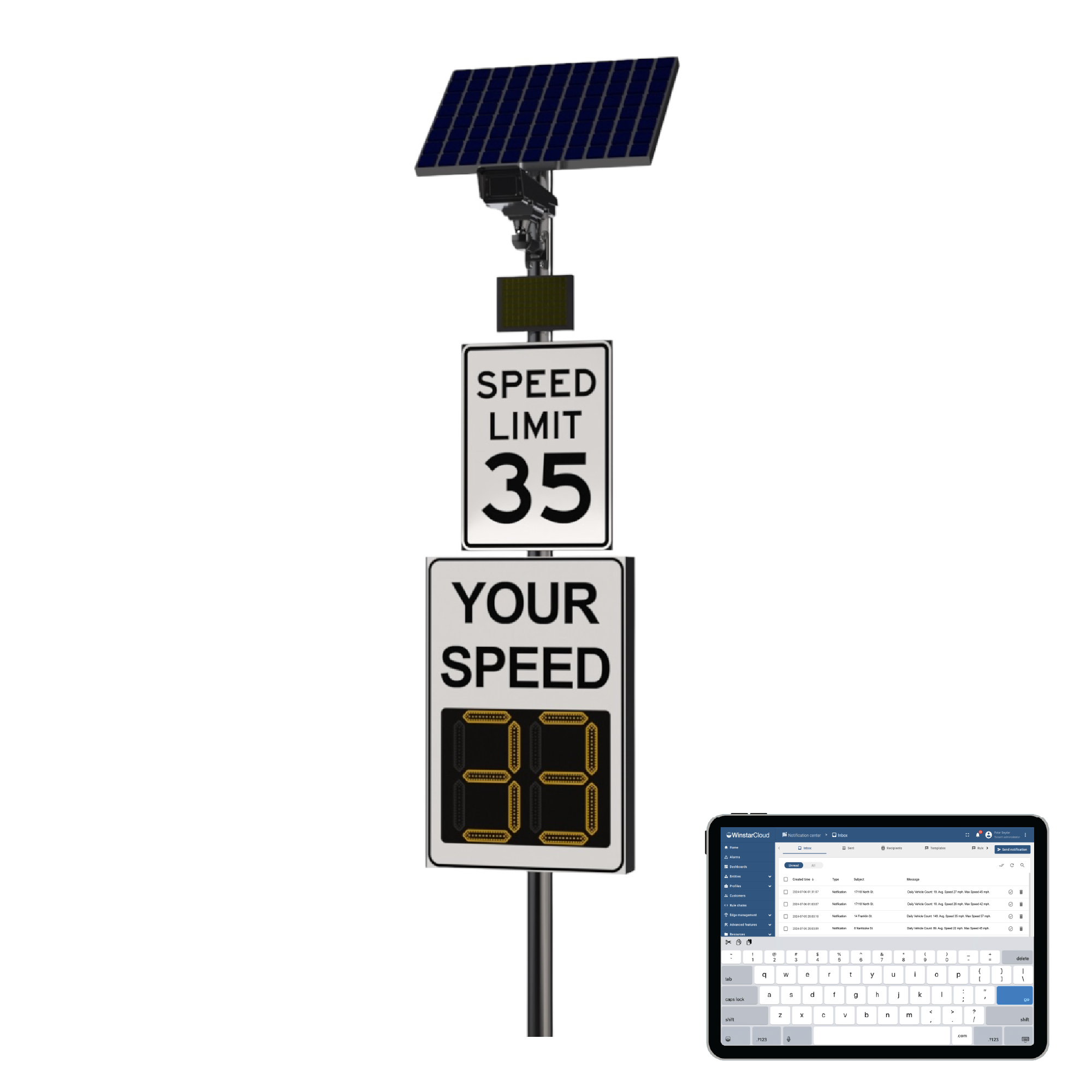

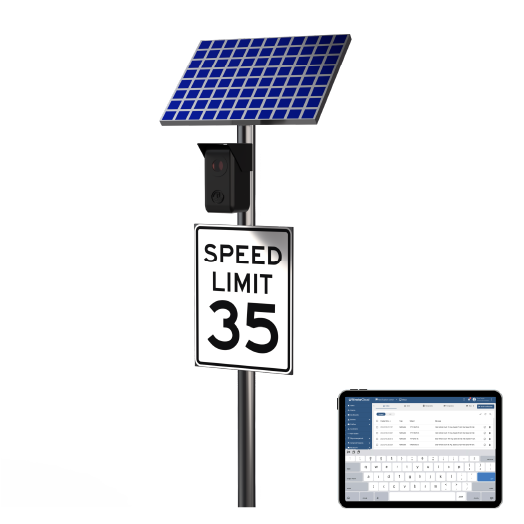

Winstar™ Community LPR Traffic Camera System

1 Year Free WinstarCloud Platform Subscription

1 Year Free 4G/5G Cellular Data Plan / Starlink Data Plan

Apple iPad 11" A16 (2025) Wi-Fi 128GB Included

Camera / Imaging:

• 12.3MP Sony IMX477 High-Resolution Sensor
• Full HD 1920×1080 Pixel Capture
• Low-Light Optimized; Optional IR Night Vision
• C-CS Mount, Motorized Telephoto Lens, PTZ (Pan-Tilt-Zoom) Module
• 4X Motorized Zoom; Day/Night Operation
• Optional Extended Zoom or Thermal Imaging Lens
• Supports Up To 4 Traffic Lanes (Standard: 2 Lanes)

ALPR (Automated License Plate Recognition):

• Hybrid Server & On-Device ALPR Rear Plate Recognition
• Optional Front Plate Recognition
• Optional Red Light Enforcement

Infrared Illuminator:

• 850 nm Infrared Light (Invisible to Naked Eye)
• 12 High-Power LEDs
• 90° Wide Beam Coverage
• Illumination Range Up to 65 Ft (20 M)
• Automatic Dusk-to-Dawn Operation
• IP67 Aluminum Housing With Reinforced Glass

Power Options:

• A/C Wired

• Battery / Solar (100W or 200W Panel, 12V 100Ah LiFePO₄ Battery with Built-In 100A BMS, 15,000+ Deep Cycles)

Communications:

• Wi-Fi 802.11 b/g/n
• GSM/Cellular 3G/4G/5G (2G Compatible)
• Standard SIM Slot
• 100 BASE-TX Wired Ethernet
• Optional Starlink Satellite Internet
• 1 Year Free 4G/5G Cellular Data Plan / Starlink Data Plan

Mechanical / Environmental:

• Camera Housing: IP65 Aluminum (White/Gray or Black)
• Camera Weight: 4lbs
• Control Enclosure: IP65 Galvanized Steel, 16"×12"×10", Thermostat & Fan-Controlled, White or Black Finish
• Operating Temperature: -40°F to 185°F

WinstarCloud:

• 1 Year Free WinstarCloud Platform Subscription

• View, Export, and Monitor All Collected Data in Real-Time From Any Internet-Connected Device.

Warranty:

• 2-Year System Warranty

• 1-Year Battery Warranty
