Winstar Road Supply is a trusted provider of professional traffic control and work-zone safety solutions, offering compact portable changeable message signs engineered for maximum visibility, durability, and remote operation. Our mission is to improve roadway safety by delivering clear, reliable messaging that protects workers, informs drivers, and keeps projects moving efficiently.

Winstar compact portable message signs are widely used in urban areas, school zones, law enforcement applications, and special events. Featuring a high-definition amber LED matrix display and flexible message control options, these signs deliver exceptional legibility and versatility in a compact footprint.

Built for demanding field conditions, Winstar message signs meet MUTCD requirements and are manufactured to rigorous quality standards. Featuring a rugged trailer design, high-definition LED technology, and an NTCIP-compliant controller, this sign provides professional-grade performance with excellent portability.

Each Winstar WRS-200MC Compact Matrix PCMS is custom made to order. Please allow 3–4 weeks lead time.

Technical Specifications

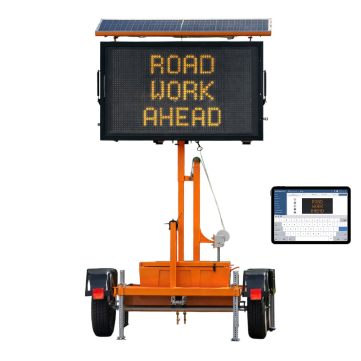

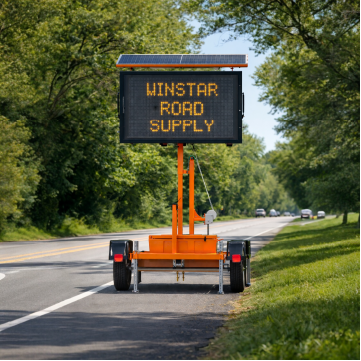

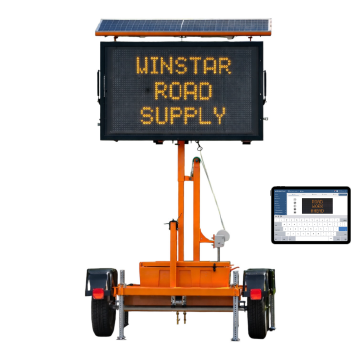

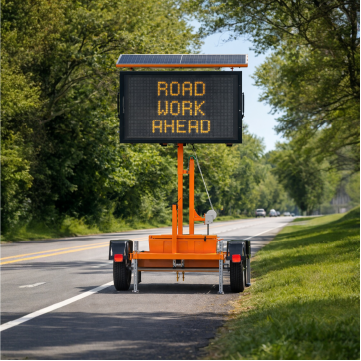

Winstar™ WRS-200MC Compact Matrix Portable Changeable Message Sign

Key Features

• Compact, full-matrix LED display
• High-contrast amber monochrome LEDs for superior clarity
• NTCIP-compliant touchscreen controller

• Three message control methods: on-sign, near-sign, and remote
• Integrated cellular connectivity with long-term data service
• Rugged trailer design optimized for urban deployment

Display & Messaging

• Display Type: Full-Matrix Monochrome (Amber) LED Message Sign
• Display Panel Size: 36" × 60"
• Matrix Resolution: 48 × 80 pixels
• LED Configuration: 1 LED per pixel
• Messaging Capability: Up to 5 lines of 18 characters per line (3 × 7 font)
• Maintenance: Plug-and-play display modules for simplified service


Controller & Connectivity

• Controller: NTCIP-Compliant Touchscreen Controller
• User Interface: NTCIP Color LCD Touchscreen

• Message Control:
  • On-sign using Touchscreen Controller
  • Near the sign using smartphone via Cloud Sync Wi-Fi
  • Remotely via web-based software
• Wireless Connectivity: Cloud Sync Wi-Fi for local message changes
• Cellular Connectivity: Fully integrated 4G LTE modem
• Remote Management: Battery status, GPS location, alerts, and message logs
• Connected Work Zone: CWZ / WZDx compatible

Smart Connectivity – WinstarCloud

• Free WinstarCloud platform subscription included
• View, monitor, and manage the sign from any internet-connected device
• Real-time access to:
  • Active messages
  • Device status
  • Battery and power levels
  • GPS location
  • Historical message logs
• Export data for reporting, compliance, and documentation
• Web-based platform — no software required

Cellular Connectivity

• Integrated 4G LTE cellular modem
• Up to 10 years of cellular data included
• No on-site Wi-Fi required
• Designed for reliable operation in urban and low-speed roadway environments

Trailer & Mechanical Features

• Operating Height: 135"
• Overall Length: 100"
• Travel Height: 95"
• Overall Width: 70"
• Approx. Weight: 1,400 lbs
• Axle Rating: 2,000 lbs
• Lift System: Manual winch lift mechanism
• Stabilization: Four adjustable stabilizer legs
• Mast: Rugged rod mast brake with up to 200° rotation
• Finish: High-quality powder-coated steel frame

Power System

• Primary Power: Battery / Solar Power System
• Solar Panels: All-Season Performance Solar Panels

• Battery Design: LiFePO4 maintenance-free batteries with anti-theft compartment

• Solar Charging: Integrated solar panels (tilt-and-rotate optional)
• Energy Efficiency: High-efficiency LED technology for extended runtime

Optional Add-Ons

• Battery charger
• Radar speed detection
• Traffic data logging (requires radar)
• Tilt-and-rotate solar panels
• Rear leveling swivel jacks
• Additional accessories available upon request

Applications

• Urban and city roadways
• School zones
• Law enforcement and traffic control
• Special events and parking management
• Low-speed roadway environments

Warranty

• Electronic Components: 2-Year Warranty
• Trailer: 3-Year Warranty
