A driver approaching a campus should recognize a crosswalk, school-zone transition, or emergency access point before a pedestrian steps into the roadway. Campus beacon installation is one of the most visible ways to strengthen that recognition, especially where vehicle speeds, changing traffic volumes, and pedestrian activity create frequent conflict points.
For campus operators, the goal is not simply to place a flashing device near a sign. A properly planned beacon system gives drivers a clear, timely instruction, supports safer decisions at critical locations, and provides a dependable asset that facilities staff can operate and maintain. The strongest projects begin with the safety problem, then match beacon type, placement, power, and controls to the actual conditions on site.
Start With the Risk, Not the Equipment
Campuses have roadway environments that do not behave like a typical neighborhood street. Class schedules create sharp pedestrian surges. Event traffic can fill parking areas within minutes. Delivery vehicles, buses, bicycles, service carts, and personal vehicles may all use the same corridor. On larger campuses, public roads can pass directly through pedestrian-heavy zones.
Before selecting a beacon, document what is happening at the location. Review observed speeds, sight distance, lane configuration, pedestrian crossing demand, lighting conditions, crash history, and near-miss reports. Comments from campus police, transportation staff, disability services, and student or employee groups often reveal problems that traffic counts alone will not show.
A flashing beacon is most effective when it addresses a specific driver decision. That may be slowing for a marked crossing, yielding to a pedestrian, recognizing a school-zone speed limit, stopping at an intersection, or avoiding a restricted access route. If the message is unclear or the device is installed where drivers have already passed the decision point, even high-quality equipment will have limited impact.
Choose the Beacon System for the Application
Not all flashing warning systems serve the same purpose. The location and intended driver response should determine the system design.
At marked pedestrian crossings, rectangular rapid flashing beacons can provide high-visibility warning when a person is preparing to cross or is actively crossing. Their user-actuated operation makes them particularly useful at midblock crossings, parking-area connections, and routes between residence halls, classrooms, athletic facilities, and transit stops.
School-zone flashing beacon systems are designed to reinforce time-based speed restrictions. They are a practical fit for K-12 campuses, but they can also support college, medical, military, and industrial campuses where recurring peak pedestrian periods require drivers to slow. Programmable schedules reduce the burden on staff while allowing the system to follow class changes, arrival periods, or event operations.
Intersection flashers and warning beacons can draw attention to stop control, sharp curves, emergency entrances, gate approaches, or conflict points with poor visibility. In locations where speeding is the central concern, a radar speed sign may be the better primary tool, with flashing beacons used to reinforce a regulatory or warning message.
The right answer depends on road ownership and conditions. A privately managed campus may have more flexibility in system selection, while a roadway under municipal, county, or state jurisdiction may require additional review and approval. For any application, equipment, signs, colors, flash patterns, and placement should align with the Manual on Uniform Traffic Control Devices, applicable state requirements, and the direction of the roadway authority.
Site Planning Makes Campus Beacon Installation Work
The most common installation failures are planning failures. A beacon can be technically functional and still underperform because it is hidden by landscaping, placed too close to a crosswalk, installed at the wrong height, or difficult for drivers to see through parked vehicles and seasonal foliage.
Begin with an approach review from each driver direction. Consider the posted speed and the speed drivers actually travel. Faster approaches need greater advance visibility and earlier warning. Curves, grades, parked vehicles, construction activity, and nighttime glare can all reduce the distance a driver has to recognize the beacon and respond safely.
Beacon assemblies should be positioned so they are conspicuous without creating visual clutter. At a pedestrian crossing, the device must work with pavement markings, advance warning signs, curb ramps, and lighting as one traffic-control system. A beacon should never be used to compensate for a crossing that lacks basic accessibility features or has poor geometry.
Pole location also deserves careful attention. Verify clear zones, underground utilities, drainage paths, snow storage areas, maintenance access, and the likelihood of vehicle strikes. On a campus with narrow sidewalks or heavy pedestrian flows, the support structure should not create an obstruction. Accessible routes must remain clear.
Power, Communications, and Controls

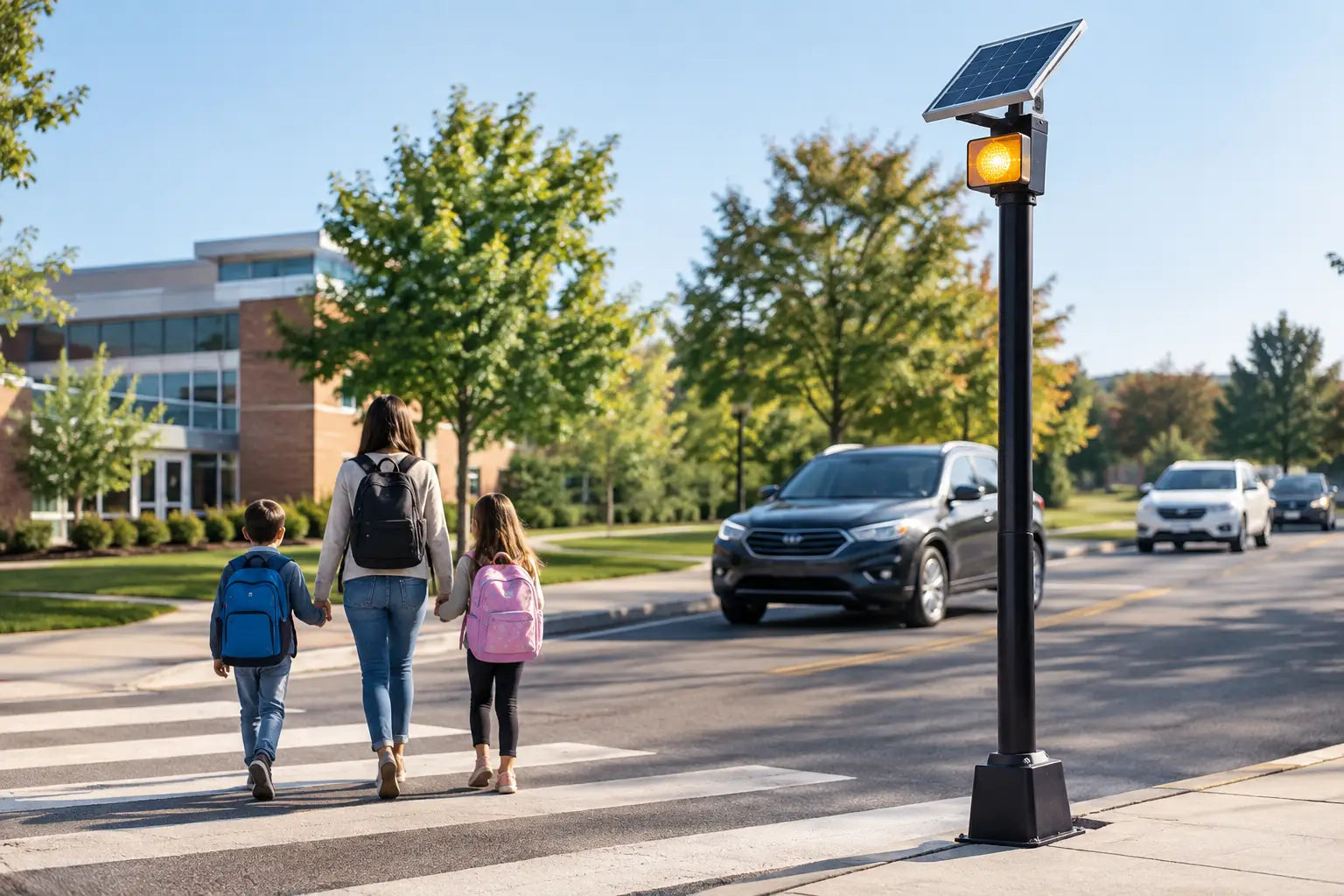

Power selection affects both project cost and long-term reliability. Solar-powered systems can reduce trenching and may be well suited for remote crossings, parking lots, trails, and locations where utility service is costly to extend. Their success depends on available sunlight, panel orientation, local weather, battery capacity, and anticipated activation frequency.
Hardwired systems can be the better choice where dependable utility power is readily available, where shading limits solar production, or where the beacon must support intensive daily operation. The trade-off is greater coordination with electrical contractors, utility providers, and underground infrastructure.
Controls should match the use case. Pedestrian systems may use accessible push buttons, passive detection, or a combination of both. Time-based school-zone flashers need accurate scheduling and a simple method for authorized staff to adjust special-event or holiday schedules. Remote monitoring can be valuable for large campuses because it helps staff identify outages, low battery conditions, or communication issues before a safety concern becomes a service call.
Build Compliance and Operations Into the Project
Procurement teams often focus on the visible device, but a complete installation includes the support systems around it. Specify equipment rated for the local environment, including temperature swings, wind exposure, moisture, and corrosion risk. Confirm that cabinets, wiring, mounts, signs, and poles are compatible with the proposed configuration.
Installation should also define who is responsible for inspections, timing changes, vegetation control, cleaning solar panels, battery replacement, and repairs after a vehicle strike. A beacon that remains dark for weeks sends the wrong message to drivers and erodes confidence among pedestrians.
Before the system is placed into service, conduct a documented field review. The commissioning process should verify four practical outcomes:
- The beacon is visible from each required approach during daytime, nighttime, and adverse weather conditions.
- Flash patterns, schedules, and push-button activation operate as intended.
- Signs, pavement markings, curb ramps, and pole placement support the required driver and pedestrian movements.
- Campus police, facilities staff, and other designated personnel know how to report faults and adjust approved settings.
Use Data to Prioritize Locations and Measure Results
A campus may have more safety needs than its immediate budget can address. That is where traffic data becomes especially useful. Radar speed data can identify the corridors with the highest speeding rates, while vehicle counts help distinguish a localized crossing issue from a broader circulation problem. Pedestrian counts, incident reports, and resident or student complaints add context to the numbers.
After installation, compare conditions before and after deployment. Measure vehicle speeds, yielding behavior, activation counts, maintenance events, and reported conflicts. A reduction in high-end speeding is often more meaningful than a small change in average speed because the most severe outcomes are tied to the fastest vehicles.
Data also helps campus leaders explain the investment. Instead of saying that a beacon "seems to help," facilities and public safety teams can show that drivers are slowing at a documented conflict point or that pedestrian activity is concentrated during predictable periods. That evidence supports future funding requests and helps refine schedules, sign placement, or enforcement activity.
Coordinate the People Who Will Live With the System
Campus safety projects work best when transportation, facilities, public safety, administration, and communications staff are involved early. Facilities teams understand power, maintenance, and construction constraints. Campus police can identify enforcement patterns and driver behavior. Administrators can coordinate policy, funding, and stakeholder communication.
It is also worth preparing the campus community for a new crossing or speed-control system. A brief announcement can explain where the beacon is located, what drivers are expected to do, and how pedestrians should activate or use it. Education does not replace engineering, but it helps establish correct behavior during the first weeks of operation.
Winstar Road Supply supports organizations that need more than a device at the roadside. The most effective installations combine the right warning equipment with sound placement, practical operating controls, and data that shows whether the investment is improving compliance.
A well-planned beacon sends a clear message at the moment a driver needs it most: slow down, look ahead, and protect the people who share the road. When that message is visible, reliable, and backed by a disciplined installation plan, a campus can make its busiest routes safer without making daily operations more complicated.
